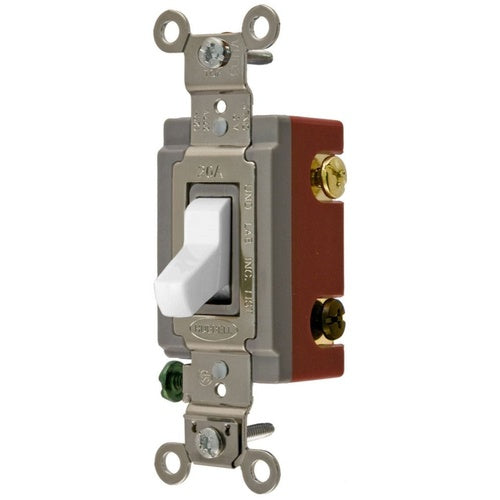

Hubbell HBL1223W 3Way 20A Industrial Grade White Ac Switch

Overview

Hubbell HBL1223W 3Way 20A Industrial Grade White Ac Switch

Product Specifications

• UPC: 78358543200
• Color: White
• Wiring: Back, Side
• Size: 1.31 Inch Width x 1.13 Inch Depth x 4.06 Inch Height
• Wall Plate Included: No
• Application: Industrial
• Approval: UL, CSA, Fed Spec W-S-896
• Additional Information: Wire Size 14 to 10 AWG Copper (Solid/Stranded); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94V-2
• Catalog Number: HBL1223W
• Brand Name: HBL[R]
• Type: Toggle, Extra Heavy Duty
• Current Rating: 20 Amp
• Voltage Rating: 120 to 277 Volt AC
• Power Rating: 1 HP at 120 Volt AC, 2 HP at 277 Volt AC
• Operation Type: 3-Way
• Material: Thermoset (Body), Nylon (Toggle), Silver Alloy (Contact), Brass (Terminal Screw)
• Catalog Description: SWITCHES AND LIGHTING CONTROLS, EXTRA HEAVY DUTY INDUSTRIAL GRADE, TOGGLE SWITCHES, GENERAL PURPOSE AC, THREE WAY, 20A 120/277V AC, BACK AND SIDE WIRED, WHITE TOGGLE
• Category: General Purpose Switches
• Full Technical Description: Toggle, Extra Heavy Duty Type; Thermoset (Body), Nylon (Toggle), Silver Alloy (Contact), Brass (Terminal Screw) Material; 1.31 Inch Width X 1.13 Inch Depth X 4.06 Inch Height Size; White Color; 3-Way Operation Type; UL, CSA, Fed Spec W-S-896 Approval; Industrial Application; 120 to 277 Volt AC Voltage Rating; 20 Amp Current Rating; 1 HP at 120 Volt AC, 2 HP at 277 Volt AC Power Rating; Back, Side Wiring; No Wall Plate Included; Hbl [R] Brand; Wire Size 14 to 10 AWG Copper (Solid/Stranded); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94V-2
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Standard AC Switch
• Unspsc: 39122211
• UPC 12 Digit: 783585432007
• SKU Name: hubw hbl1223w
