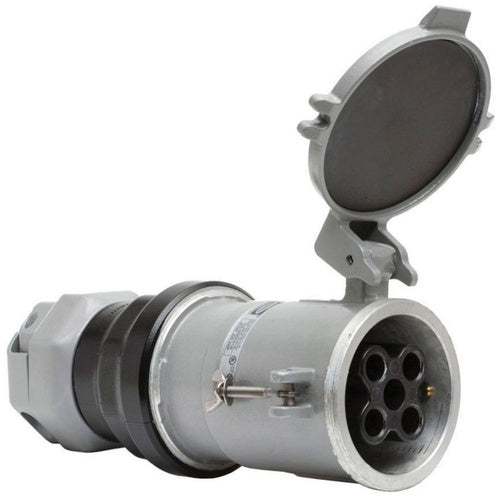

Hubbell HBL5200CS1W Pin And Sleeve, Ins, Connector, 4P5W, 200A 600V, S1

Overview

Hubbell HBL5200CS1W Pin And Sleeve, Ins, Connector, 4P5W, 200A 600V, S1

Product Specifications

• UPC: 78358501158
• Number Of Wires: 5
• Grounding Style: 1, Shell
• Minimum Cable Outer Diameter: 1 Inch
• Maximum Cable Outer Diameter: 2.5 Inch
• Material: Aluminum
• Approval: UL, CSA
• Additional Information: Enclosure IP67; Enclosure NEMA 4X; Temperature Rating -40 to 75 Deg C; Application Agriculture, Chemical Processing, Construction, Entertainment, Food Processing, Food Service, Light Manufacturing, Military
• Catalog Number: HBL5200CS1W
• Brand Name: Insulgrip[R]
• Model: HBL
• Type: Fan, Heater, Polarized, Pump
• Constructional Feature: Watertight
• Voltage Rating: 600 VAC/250 VDC
• Current Rating: 200 Ampere
• Number Of Poles: 4
• Catalog Description: HEAVY DUTY INSULGRIP PIN AND SLEEVE DEVICES, INDUSTRIAL GRADE FEMALE CONNECTOR BODY, 200A 600V AC, 4-POLE 5-WIRE GROUNDING, TERMINAL SCREWS, WATERTIGHT
• Category: Pin & Sleeve Devices
• Full Technical Description: Fan, Heater, Polarized, Pump Type; Aluminum Material; 1 Inch min. Cable Outer Diameter; 2.5 Inch Max. Cable Outer Diameter; 5 Wire(S); UL, CSA Approval; 600 Vac/250 VDC Voltage Rating; 200 Ampere Current Rating; 4 Pole(S); Watertight; 1, Shell Grounding Style; INSULGRIP[R] Brand; Enclosure IP67; Enclosure NEMA 4X; Temperature Rating -40 to 75 Deg C; Application Agriculture, Chemical Processing, Construction, Entertainment, Food Processing, Food Service, Light Manufacturing, Military; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585011585
• SKU Name: hubw hbl5200cs1w
