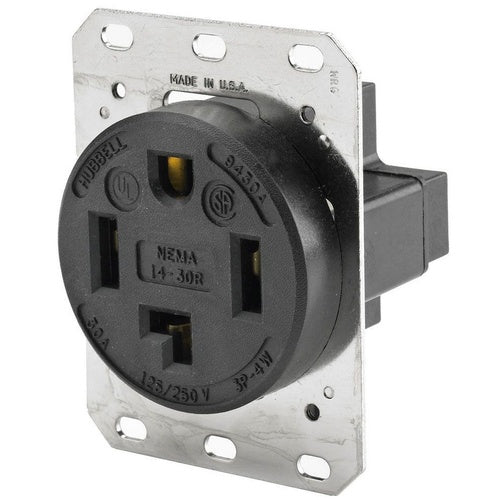

Hubbell HBL9430A Receptacle, 3P4W, 30A 125/250V, 14-30R

Overview

Hubbell HBL9430A Receptacle, 3P4W, 30A 125/250V, 14-30R

Product Specifications

• UPC: 78358501529
• Ground Type: Grounding
• Color: Black
• Material: Reinforced Thermoplastic Polyester
• Face Outer Diameter: 2.44 Inch
• Mounting Depth: 1.81 Inch
• Approval: UL 498, CSA
• Additional Information: Wire Size 12 to 4 AWG Copper; Enclosure Rating IP20; Material Brass (Contact), 0.062 Inch Pre-Plated Steel (Mounting Plate); Temperature Rating -40 to 75 Deg C
• Catalog Number: HBL9430A
• Brand Name: Wiring Device-Kellems
• Type: Single
• Configuration: 14-30R
• Voltage Rating: 125/250 Volt
• Current Rating: 30 Amp
• Number Of Poles: 3
• Number Of Wires: 4
• Catalog Description: DESIGNED FOR PLUG-IN EV CHARGING APPLICATIONS, HUBBELLS 14-50R RECEPTACLE IS A PREMIUM AND DEPENDABLE SOLUTION TO EXCEED THE REQUIREMENTS OF ELECTRIC VEHICLE OWNERS. THIS RECEPTACLE ENSURES A SAFE AND EFFICIENT CHARGING EXPERIENCE, PROVIDING PEACE OF MIND TO EV USERS.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Reinforced Thermoplastic Polyester Material; Black Color; 14-30R Configuration; 4 Wire(S); UL 498, CSA Approval; 125/250 Volt Voltage Rating; 30 Amp Current Rating; Grounding; 3 Pole(S); 1.81 Inch Mounting Depth; 2.44 Inch Face Outer Diameter; Wire Size 12 to 4 AWG Copper; Enclosure Rating IP20; Material Brass (Contact), 0.062 Inch Pre-Plated Steel (Mounting Plate); Temperature Rating -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Power Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585015293
• SKU Name: hubw hbl9430a
