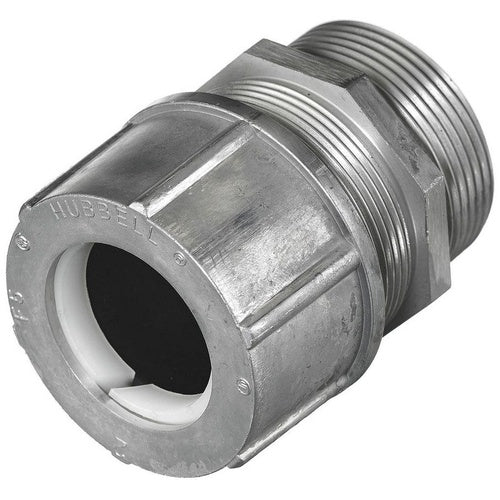

Hubbell SHC1057 Cord Connector, Straight Male, 1.00-1.13", 1-1/2", Al

Overview

Hubbell SHC1057 Cord Connector, Straight Male, 1.00-1.13", 1-1/2", Al

Product Specifications

• UPC: 78358520057
• Application: Hazardous Location
• Additional Information: Form Size F5; Color Code White; Enclosure Rating NEMA 4/4X/12/13, IP66; Temperature Rating -30 to 225 Deg F
• Catalog Number: SHC1057
• Brand Name: Wiring Device-Kellems
• Type: Straight Male
• Thread Size: 1-1/2 Inch Threaded
• Material: Cast Aluminum
• Cord Size: 1 to 1.13 Inch
• Size: 2.31 Inch Diameter x 2.44 Inch Length
• Approval: UL 514B, CSA
• Catalog Description: KELLEMS WIRE MANAGEMENT, CORD CONNECTORS, STRAIGHT MALE, 1.00-1.13", 1 1/2", ALUMINUM
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Cast Aluminum Material; 2.31 Inch Diameter X 2.44 Inch Length Size; UL 514B, CSA Approval; Hazardous Location Application; 1-1/2 Inch Threaded Thread Size; 1 to 1.13 Inch Cord Size; Form Size F5; Color Code White; Enclosure Rating NEMA 4/4X/12/13, IP66; Temperature Rating -30 to 225 Deg F
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 783585200576
• SKU Name: hubw shc1057

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
