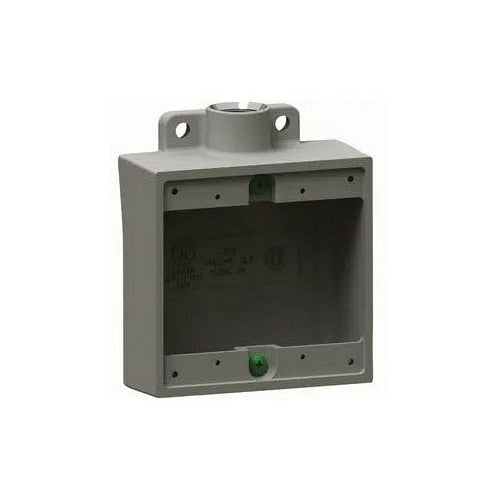

Killark 2FS-2 3/4" 2-Gang Electrolet

Overview

Killark 2FS-2 3/4" 2-Gang Electrolet

Product Specifications

• UPC: 78393619005
• Number Of Hubs: 1
• Hub Location: (1) Top
• Hub Size: 3/4 Inch
• Material: Electrostatically Applied Powder Coated Copper-Free Aluminum
• Shape: Shallow
• Configuration Type: FS
• Mounting Hardware: Lug
• Approval: UL 514A, CSA C22.2
• Additional Information: Applicable Standard Federal Specification W-C-586D, NEMA FB-1
• Catalog Number: 2FS-2
• Brand Name: Killark
• Model: 2FS
• Height: 4-5/8 Inch
• Width: 4-11/16 Inch
• Depth: 2 Inch
• Capacity: 32 Cubic Inch
• Number Of Gangs: 2
• Catalog Description: 3/4"ALUMINUM, 2FS TYPE TWO GANG SHALLOW DEVICE BOX
• Category: Aluminum Fs&Fd Type Boxes & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper-Free Aluminum Material; 4-11/16 Inch; 4-5/8 Inch; 2 Inch; Shallow Shape; 3/4 Inch Hub Size; 1 Hub(S); 2 Gang(S); UL 514A, CSA C22.2 Approval; 32 Cubic Inch Capacity; Lug Mounting Hardware; (1) Top Hub Location; FS Configuration Type; Applicable Standard Federal Specification W-C-586D, NEMA FB-1; 2FS Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39131708
• UPC 12 Digit: 783936190051
• SKU Name: klrk 2fs2

Resources

• Manufacturer Spec Sheet
• Technical Drawing
