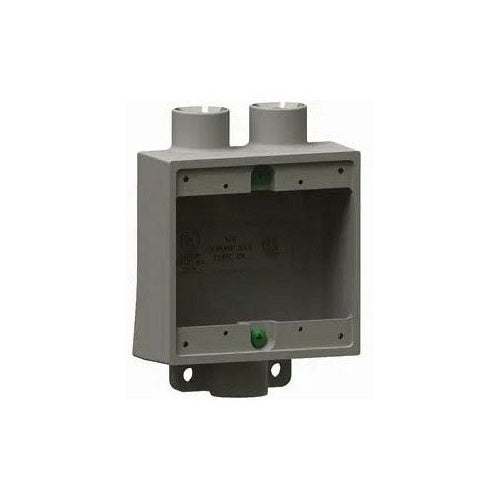

Killark 2FSD-2 3/4" 2-Gang Electrolet

Overview

Killark 2FSD-2 3/4" 2-Gang Electrolet

Product Specifications

• UPC: 78393619236
• Hub Location: (2) One End, (1) Other End
• Hub Size: 3/4 Inch
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Shape: Shallow
• Configuration Type: FSD
• Mounting Hardware: Not Included
• Approval: UL 514A, CSA C22.2
• Catalog Number: 2FSD-2
• Model: 2FSD
• Height: 4-5/8 Inch
• Width: 4-11/16 Inch
• Depth: 2 Inch
• Capacity: 32 Cu Inch
• Number Of Gangs: 2
• Number Of Hubs: 3
• Catalog Description: 3/4"ALUMINUM, 2FSD TYPE TWO GANG SHALLOW DEVICE BOX
• Category: Aluminum Fs&Fd Type Boxes & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 4-11/16 Inch; 4-5/8 Inch; 2 Inch; Shallow Shape; 3/4 Inch Hub Size; 3 Hub(S); 2 Gang(S); UL 514A, CSA C22.2 Approval; 32 Cu Inch Capacity; Not Included Mounting Hardware; (2) One End, (1) Other End Hub Location; Fsd Configuration Type; 2FSD Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39121308
• UPC 12 Digit: 783936192369
• SKU Name: klrk 2fsd2

Resources

• Manufacturer Spec Sheet
• Technical Drawing
