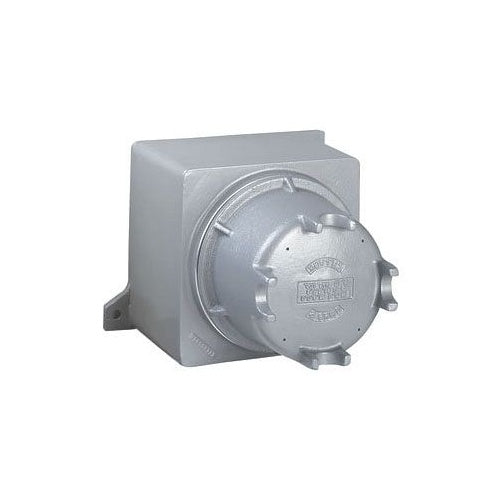

Killark 4GRB 4" Box W/Dome Cover

Overview

Killark 4GRB 4" Box W/Dome Cover

Product Specifications

• UPC: 78393623024
• Size: 9 INCH H
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS I ZONE 1 AND 2 GROUP IIA IIB+H2, CLASS II DIV 1AND 2 GROUP E F G, CLASS III DIV 1 AND 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G
• Approval: UL 886, UL 1203, CSA C22.2, FM
• Catalog Number: 4GRB
• Brand Name: KILLARK[R]
• Model: GR
• Constructional Feature: CORROSION RESISTANT, DUST IGNITION PROOF, EXPLOSION PROOF
• Hub Size: 1 1/2 INCH
• Cover Type: DOME
• Body Material: COPPER FREE ALUMINUM
• Body Finish: ELECTROSTATICALLY APPLIED GRAY EPOXY/POLYESTER POWDER COATED
• Catalog Description: GR SERIES, 3.75 X 3.75 X 9", CLASS I, II, III, BCDEFG, CAST ALUMINUM, TYPE 4, 4" DOME SCREW COVER ENCLOSURE
• Category: Outlet Boxes - Non Metallic
• Full Technical Description: 9 Inch H Size; 1 1/2 Inch Hub Size; UL 886, UL 1203, CSA C22.2, FM Approval; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group Iia IIB+H2, Class II Div 1AND 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G Enclosure; Dome Cover Type; Copper Free Aluminum Body Material; Corrosion Resistant, Dust Ignition Proof, Explosion Proof; Electrostatically Applied Gray Epoxy/Polyester Powder Coated Body Finish; KILLARK[R] Brand; GR Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Instrument Enclosure
• Unspsc: 39121314
• UPC 12 Digit: 783936230245
• SKU Name: klrk 4grb

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
