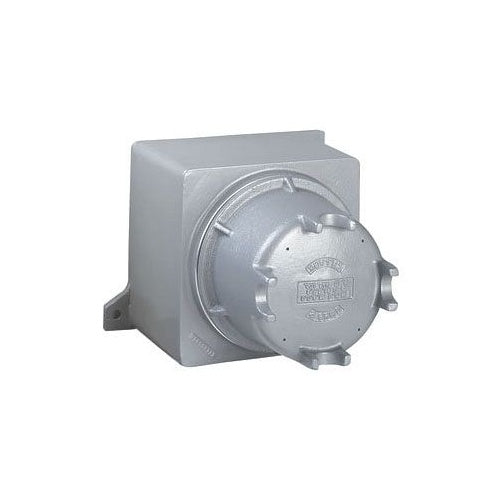

Killark 4GRK 4" Box W/Dome Cover

Overview

Killark 4GRK 4" Box W/Dome Cover

Product Specifications

• UPC: 78393623218
• Enclosure: Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group IIA IIB+H2, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G, IP66
• Used On: Junction, Splice Box, Enclosure to House Meter, Relays, Terminal Strips, Control Transformers
• Approval: UL 886/1203, CSA C22.2, FM
• Catalog Number: 4GRK
• Constructional Feature: Corrosion Resistant, Dust Ignitionproof, Explosionproof
• Hub Size: 2-1/2 Inch
• Cover Type: Dome
• Body Material: Copper Free Aluminum
• Body Finish: Electrostatically Applied Gray Epoxy/Polyester Powder Coated
• Cover Material: Cast Copper Free Aluminum
• Size: 11-15/16 Inch H
• Catalog Description: GR SERIES, 7.06 X 8.31 X 11.93", CLASS I, II, III, BCDEFG, CAST ALUMINUM, TYPE 4, 4" DOME SCREW COVER ENCLOSURE
• Category: Outlet Boxes - Non Metallic
• Full Technical Description: 11-15/16 Inch H Size; Junction, Splice Box, Enclosure to House Meter, Relays, Terminal Strips, Control Transformers Used on; 2-1/2 Inch Hub Size; UL 886/1203, CSA C22.2, FM Approval; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group Iia IIB+H2, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G, IP66 Enclosure; Dome Cover Type; Copper Free Aluminum Body Material; Corrosion Resistant, Dust Ignitionproof, Explosionproof; Cast Copper Free Aluminum Cover Material; Electrostatically Applied Gray Epoxy/Polyester Powder Coated Body Finish
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Instrument Enclosure
• Unspsc: 39121314
• UPC 12 Digit: 783936232188
• SKU Name: klrk 4grk

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
