Killark B7NFD1 30A NF Disconnect Enclosure

Overview

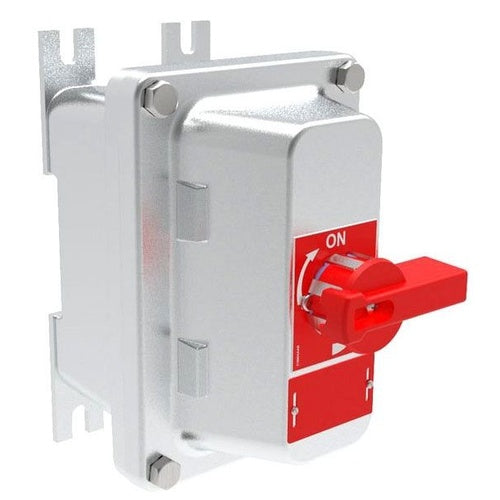

Killark B7NFD1 30A NF Disconnect Enclosure

Product Specifications

• Application: The PRISM B7 Series of non-fused disconnect switches are used: in locations made hazardous due to the presence of flammable gasses or vapors or ignitable dusts, fibers, and flyings; outdoors or indoors in damp, wet, and dirty locations; in areas where fre
• Sub Brand: PRISM
• Type: Aluminum compact non-fused disconnect switch enclosure without switch
• Brand Name: KILLARK
• Enclosure: Aluminum junction box
• Environmental Conditions: Wet and hazardous locations
• Material: Copper-Free Aluminum
• Mounting: Ductile mounting lugs
• Size: 8-1/6 H x 5-3/4 W x 6-5/16 D
• Special Features: Compact size enclosures provide application flexibility with cost savings over industry standard sizes. Fewer cover bolts reduces installation and maintenance time. Gasketed flange with O-ring located in side bolt circle to seal out moisture. Rotary handl
• Standard: cCSAus
• Catalog Description: B7NFD SERIES - ALUMINUM FEED-THRU COMPACT NON-FUSED DISCONNECT SWITCH ENCLOSURE - 30A
• Category: Disconnect Motor Switches & Accessories
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Unspsc: 39122205
• UPC 12 Digit: 783936009780
• SKU Name: klrk b7nfd1

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
• Technical Drawing
