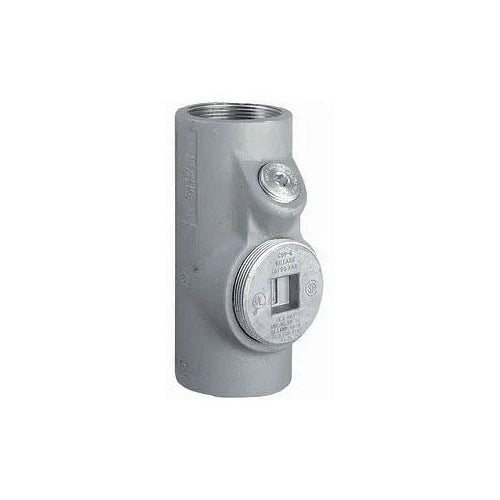

Killark ENY-1 Sealing Fitting 1/2" Aluminum Female/Female

Overview

Killark ENY-1 Sealing Fitting 1/2" Aluminum Female/Female

Product Specifications

• UPC: 78393611110
• Mounting Position: Horizontal/Vertical
• Enclosure: Class I Div 1 and 2 Group A B C D, Class I Zone 1 Group IIA IIB IIC, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL, CSA
• Additional Information: Overall Dimension 1-9/32 Inch Diameter x 4-1/16 Inch Height
• Catalog Number: ENY-1
• Brand Name: Killark
• Model: EY
• Type: Hub
• Turning Radius: 1-3/32 Inch
• Trade Size: 1/2 Inch
• Connection Type: Female/Female
• Material: Electrostatically Applied Powder Coated Copper-Free Aluminum
• Catalog Description: " ENY SEAL FITTING ALUMINUM, FEMALE/FEMALE
• Category: Aluminum Sealing Bodies
• Full Technical Description: Hub Type; Electrostatically Applied Powder Coated Copper-Free Aluminum Material; Female/Female Connection Type; UL, CSA Approval; Class I Div 1 and 2 Group A B C D, Class I Zone 1 Group Iia Iib Iic, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1/2 Inch Trade Size; Horizontal/Vertical Mounting Position; 1-3/32 Inch Turning Radius; Overall Dimension 1-9/32 Inch Diameter X 4-1/16 Inch Height; EY Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39131708
• UPC 12 Digit: 783936111100
• SKU Name: klrk eny1

Resources

• Manufacturer Spec Sheet
