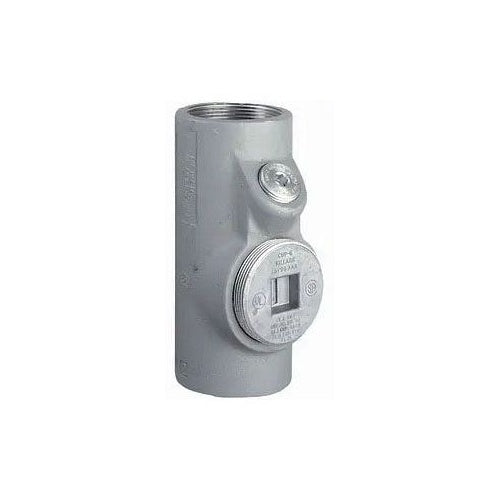

Killark ENY-2M 3/4" Sealing Fitting

Overview

Killark ENY-2M 3/4" Sealing Fitting

Product Specifications

• UPC: 78393611132
• Enclosure: Class I Div 1 and 2 Group A B C D, Class I Zone 1 Group IIA IIB IIC, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL, CSA
• Additional Information: Overall Dimension 4-1/16 Inch H
• Catalog Number: ENY-2M
• Model: ENY
• Type: Hub
• Turning Radius: 1-9/32 Inch
• Trade Size: 3/4 Inch
• Connection Type: Female Threaded, Female
• Material: Electrozinc Chromate Sealant Electrostatically Applied Powder Coated Duraloy Iron
• Mounting Position: Horizontal/Vertical
• Catalog Description: " ENY SEAL FITTING IRON, FEMALE/FEMALE
• Category: Steel Sealing Bodies
• Full Technical Description: Hub Type; Electrozinc Chromate Sealant Electrostatically Applied Powder Coated Duraloy Iron Material; Female Threaded, Female Connection Type; UL, CSA Approval; Class I Div 1 and 2 Group A B C D, Class I Zone 1 Group Iia Iib Iic, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3/4 Inch Trade Size; Horizontal/Vertical Mounting Position; 1-9/32 Inch Turning Radius; Overall Dimension 4-1/16 Inch H; ENY Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39131708
• UPC 12 Digit: 783936111322
• SKU Name: klrk eny2m

Resources

• Manufacturer Spec Sheet
