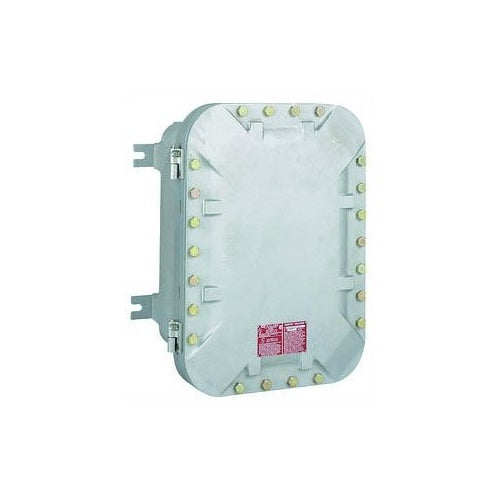

Killark EXB-10148-N34 Quantum Enclosure 10X14X8 Cast Aluminum

Overview

Killark EXB-10148-N34 Quantum Enclosure 10X14X8 Cast Aluminum

Product Specifications

• UPC: 78393611906
• Body Finish: Aluminum Lacquer Paint
• Cover Material: Steel
• Mounting: Lug
• Approval: UL 886/698/1203, CSA C22.2
• Catalog Number: EXB-10148 N34
• Brand Name: QUANTUM[R]
• Model: EXB
• Hub Size: 5 Inch
• Overall Size: 14 Inch L x 10 Inch W x 8 Inch D
• Inner Size: 14 Inch L x 10 Inch W x 8.2 Inch D
• Enclosure: Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group IIB+H2 IIA, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G, IP66
• Body Material: Copper Free Cast Aluminum
• Catalog Description: EXB SERIES, 10 X 14 X 8, CLASS I, II, III, BCDEFG, CAST ALUMINUM, TYPE 4, BOLTED ENCLOSURE
• Category: Outlet Boxes - Non Metallic
• Full Technical Description: 14 Inch L X 10 Inch W X 8 Inch D Overall Size; 14 Inch L X 10 Inch W X 8.2 Inch D Inner Size; 5 Inch Hub Size; UL 886/698/1203, CSA C22.2 Approval; Lug Mounting; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group IIB+H2 Iia, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G, IP66 Enclosure; Copper Free Cast Aluminum Body Material; Steel Cover Material; Aluminum Lacquer Paint Body Finish; QUANTUM[R] Brand; EXB Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121314
• UPC 12 Digit: 783936119069
• SKU Name: klrk exb10148n34

Resources

• Manufacturer Spec Sheet
• Technical Drawing
