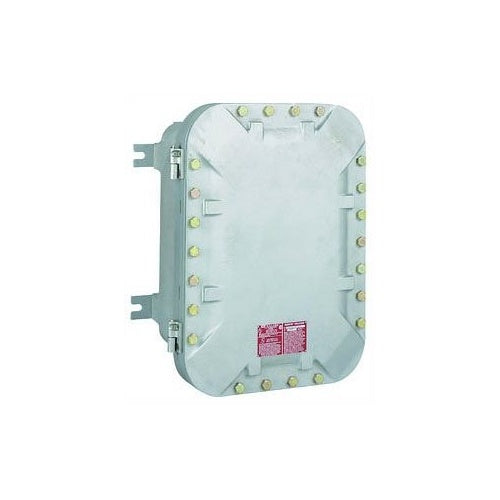

Killark EXB-14148-N34 Quantum Enclosure 14X14X8 Cast Aluminum

Overview

Killark EXB-14148-N34 Quantum Enclosure 14X14X8 Cast Aluminum

Product Specifications

• UPC: 78393611914
• Enclosure: Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group Ibis Plus H2 Imia, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/7B/7C/7D/9E/9F/9G
• Body Material: Copper Free Cast Aluminum
• Body Finish: Aluminum Lacquer Painted
• Cover Material: Aluminum with Stainless Steel
• Mounting: Lug
• Approval: UL 698, UL 886, UL 1203, CSA C22.2
• Catalog Number: EXB-14148 N34
• Brand Name: QUANTUM[R]
• Model: EXB
• Hub Size: 5 Inch
• Hub Location: Back, Side
• Overall Size: 19.25 Inch W x 11.4 Inch D x 19.25 Inch H
• Inner Size: 14 Inch W x 8.2 Inch D x 14 Inch H
• Cover Type: Bolt-On, Hinged
• Catalog Description: EXB SERIES, 14 X 14 X 8, CLASS I, II, III, BCDEFG, CAST ALUMINUM, TYPE 4, BOLTED ENCLOSURE
• Category: Nema Type 9 Metallic Enclosures, Boxes, Cabinets
• Full Technical Description: 19.25 Inch W X 11.4 Inch D X 19.25 Inch H Overall Size; 14 Inch W X 8.2 Inch D X 14 Inch H Inner Size; 5 Inch Hub Size; UL 698, UL 886, UL 1203, CSA C22.2 Approval; Lug Mounting; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group Ibis Plus H2 Imia, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/7B/7C/7D/9E/9F/9G Enclosure; Bolt-on, Hinged Cover Type; Copper Free Cast Aluminum Body Material; Aluminum With Stainless Steel Cover Material; Back, Side Hub Location; Aluminum Lacquer Painted Body Finish; QUANTUM[R] Brand; EXB Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121314
• UPC 12 Digit: 783936119144
• SKU Name: klrk exb14148n34
