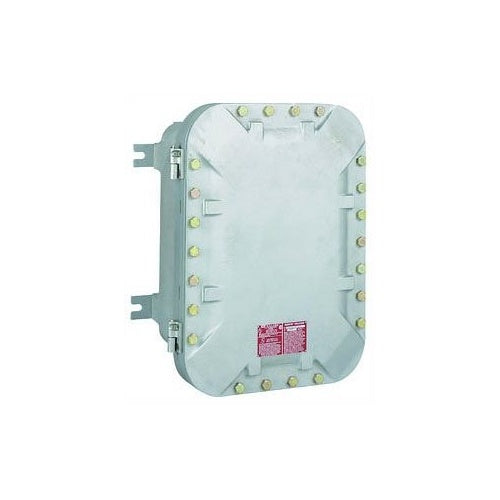

Killark EXB-8106-N34 Explosion-Proof Enclosure

Overview

Killark EXB-8106-N34 Explosion-Proof Enclosure

Product Specifications

• UPC: 78393611933
• Enclosure: Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group Ibis Plus H2 Imia, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/7B/7C/7D/9E/9F/9G
• Body Material: Copper Free Cast Aluminum
• Body Finish: Aluminum Lacquer Painted
• Cover Material: Aluminum with Stainless Steel
• Mounting: Lug
• Approval: UL 698, UL 886, UL 1203, CSA C22.2
• Catalog Number: EXB-8106 N34
• Brand Name: QUANTUM[R]
• Model: EXB
• Hub Size: 3 Inch
• Hub Location: Back, Side
• Overall Size: 12.32 Inch W x 8.32 Inch D x 14.32 Inch H
• Inner Size: 7.59 Inch W x 6.06 Inch D x 9.59 Inch H
• Cover Type: Bolt-On
• Catalog Description: EXB SERIES, 8 X 10 X 6, CLASS I, II, III, BCDEFG, CAST ALUMINUM, TYPE 4, BOLTED ENCLOSURE
• Category: Nema Type 9 Metallic Enclosures, Boxes, Cabinets
• Full Technical Description: 12.32 Inch W X 8.32 Inch D X 14.32 Inch H Overall Size; 7.59 Inch W X 6.06 Inch D X 9.59 Inch H Inner Size; 3 Inch Hub Size; UL 698, UL 886, UL 1203, CSA C22.2 Approval; Lug Mounting; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group Ibis Plus H2 Imia, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/7B/7C/7D/9E/9F/9G Enclosure; Bolt-on Cover Type; Copper Free Cast Aluminum Body Material; Aluminum With Stainless Steel Cover Material; Back, Side Hub Location; Aluminum Lacquer Painted Body Finish; QUANTUM[R] Brand; EXB Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121314
• UPC 12 Digit: 783936119335
• SKU Name: klrk exb8106n34

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
• Technical Line Drawing
