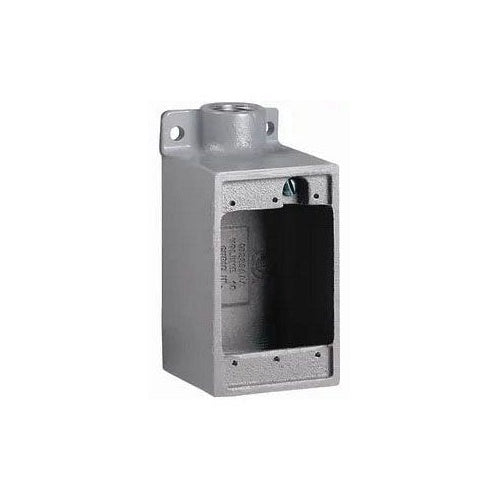

Killark FD-1M 1/2" Dead End Deep Iron

Overview

Killark FD-1M 1/2" Dead End Deep Iron

Product Specifications

• UPC: 78393604853
• Number Of Hubs: 1
• Hub Location: (1) End
• Hub Size: 1/2 Inch
• Material: Electro Zinc/Chromate Sealant/Electrostatically Applied Powder Coated Duraloy Iron
• Shape: Deep
• Configuration Type: FD
• Approval: UL 514A, CSA C22.2, FS W-C-586D
• Additional Information: Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw
• Catalog Number: FD-1M
• Model: FD
• Type: Dead End
• Height: 4-5/8 Inch
• Width: 2-7/8 Inch
• Depth: 2-7/8 Inch
• Capacity: 28 Cu Inch
• Number Of Gangs: 1
• Catalog Description: "IRON, DEEP DEAD END DEVICE BOX
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Dead End Type; Electro Zinc/Chromate Sealant/Electrostatically Applied Powder Coated Duraloy Iron Material; 2-7/8 Inch; 4-5/8 Inch; 2-7/8 Inch; Deep Shape; 1/2 Inch Hub Size; 1 Hub(S); 1 Gang(S); UL 514A, CSA C22.2, FS W-C-586D Approval; 28 Cu Inch Capacity; (1) End Hub Location; FD Configuration Type; Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw; FD Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39131708
• UPC 12 Digit: 783936048536
• SKU Name: klrk fd1m

Resources

• Manufacturer Spec Sheet
