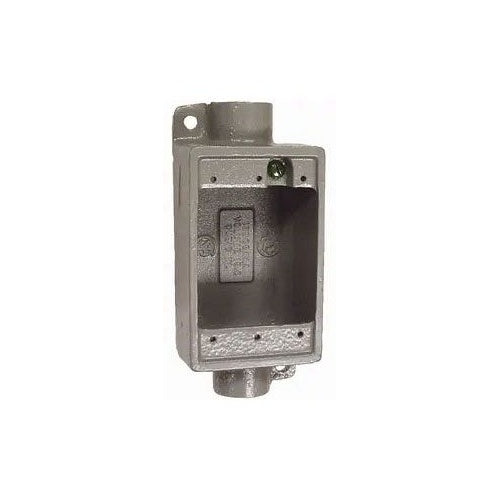

Killark FDC-2M 3/4" Feed Thru Deep Iron

Overview

Killark FDC-2M 3/4" Feed Thru Deep Iron

Product Specifications

• UPC: 78393604861
• Number Of Hubs: 2
• Hub Location: (1) Each End
• Hub Size: 3/4 Inch
• Material: Electro Zinc/Chromate Sealant/Electrostatically Applied Powder Coated Duraloy Iron
• Shape: Deep
• Configuration Type: FDC
• Mounting Hardware: Lug
• Approval: UL 514A, CSA C22.2, FS W-C-586D
• Additional Information: Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw
• Catalog Number: FDC-2M
• Model: FDC
• Type: Feed Through
• Height: 4-5/8 Inch
• Width: 2-7/8 Inch
• Depth: 2-7/8 Inch
• Capacity: 28.5 Cu Inch
• Number Of Gangs: 1
• Catalog Description: "IRON, DEEP FEED THRU DEVICE BOX
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Feed Through Type; Electro Zinc/Chromate Sealant/Electrostatically Applied Powder Coated Duraloy Iron Material; 2-7/8 Inch; 4-5/8 Inch; 2-7/8 Inch; Deep Shape; 3/4 Inch Hub Size; 2 Hub(S); 1 Gang(S); UL 514A, CSA C22.2, FS W-C-586D Approval; 28.5 Cu Inch Capacity; Lug Mounting Hardware; (1) Each End Hub Location; Fdc Configuration Type; Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw; FDC Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39121308
• UPC 12 Digit: 783936048611
• SKU Name: klrk fdc2m

Resources

• Manufacturer Spec Sheet
