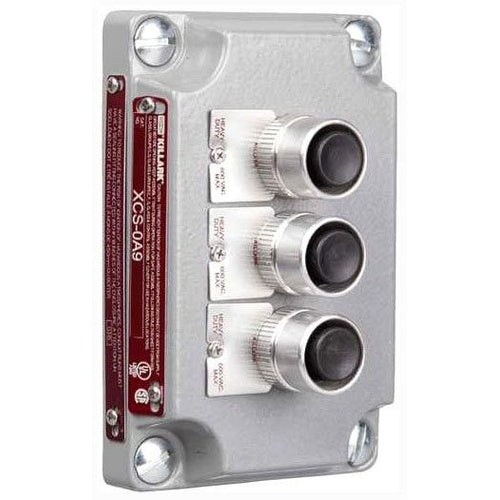

Killark XCS-0A9 Pushbutton Station

Overview

Killark XCS-0A9 Pushbutton Station

Product Specifications

• UPC: 78393689048
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G
• Used On: XCS Series Pushbutton Control Station
• Approval: UL, CSA
• Catalog Number: XCS-0A9
• Model: XCS
• Contact Rating: 600 VAC 10 Ampere
• Operation Type: Momentary
• Contact Configuration: 3NO-3NC
• Number Of Pushbuttons: 3
• Cap/Lens Color: Black
• Material: Cast Copper Free Aluminum Alloy
• Catalog Description: XCS SERIES - ALUMINUM MOMENTARY CONTACT THREE MINI PUSH BUTTON COVER WITH DEVICE - THREE BLACK BUTTONS WITH NAMEPLATES TO BE SPECIFIED -3NO/3NC CONTACT RATING
• Category: Control Station Cover Assemblies
• Full Technical Description: Cast Copper Free Aluminum Alloy Material; Xcs Series Pushbutton Control Station Used on; 3NO-3NC Contact Configuration; Momentary Operation Type; 600 VAC 10 Ampere Contact Rating; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G Enclosure; Black Cap/Lens Color; 3 Pushbutton(S); XCS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Pushbutton Cover
• Unspsc: 39122216
• UPC 12 Digit: 783936890487
• SKU Name: klrk xcs0a9

Resources

• Manufacturer Spec Sheet
