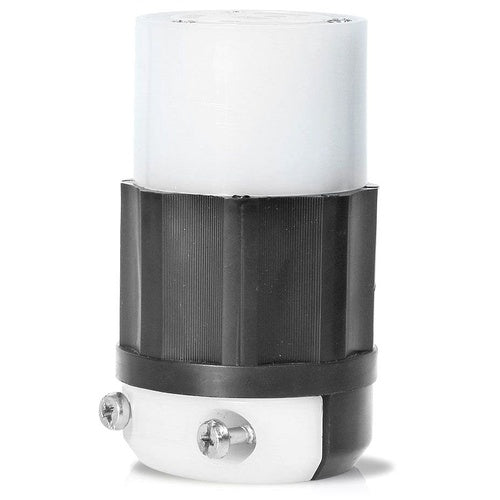

Leviton 2813 Locking Connector L21-30R

Overview

Leviton 2813 Locking Connector L21-30R

Product Specifications

• UPC: 07847780860
• Color: Black/White
• Cord Size: 0.595 to 1.15 Inch, 14 to 8 AWG
• Approval: UL, CSA, NOM
• Additional Information: APPLICATION INDUSTRIAL; OPERATING TEMPERATURE -40 TO 60 DEG C; MATERIAL THERMOPLASTIC (BACK COVER), SOLID BRASS (BLADE/CONTACT), STEEL (ASSEMBLY SCREW)
• Catalog Number: 2813
• Configuration: L21-30R
• Voltage Rating: 120/208 Volt 3-Phase
• Current Rating: 30 Amp
• Number Of Poles: 4
• Number Of Wires: 5
• Ground Type: Grounding
• Material: Impact Modified Nylon
• Catalog Description: 30 AMP, 120/208 VOLT 3PY, NEMA L21-30R, 4P, 5W, LOCKING CONNECTOR, INDUSTRIAL GRADE, GROUNDING - BLACK-WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Impact Modified Nylon Material; Black/White Color; L21-30R Configuration; 5 Wire(S); UL, CSA, NOM Approval; 120/208 Volt 3-Phase Voltage Rating; 30 Amp Current Rating; Grounding; 4 Pole(S); 0.595 to 1.15 Inch, 14 to 8 AWG Cord Size; Application Industrial; Operating Temperature -40 to 60 Deg C; Material Thermoplastic (Back Cover), Solid Brass (Blade/Contact), Steel (Assembly Screw)
• Made In Usa: Yes
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Locking Device Connector
• Unspsc: 39121402
• UPC 12 Digit: 078477808603
• SKU Name: lev 2813
