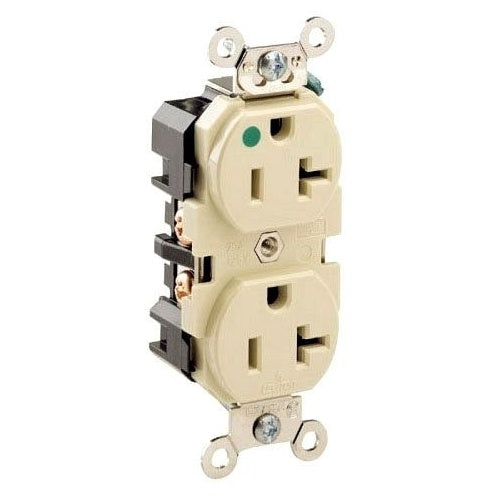

Leviton 8300-I 20A 125V Hospital Receptacle

Overview

Leviton 8300-I 20A 125V Hospital Receptacle

Product Specifications

• UPC: 07847781862
• Ground Type: Self-Grounding
• Material: Thermoplastic Nylon (Body/Face)
• Color: Ivory
• Wiring: Back, Side
• Grade: Extra Heavy Duty Hospital
• Approval: UL 498, CSA C22.2, NOM 057
• Additional Information: Overall Dimension 1.53 Inch Width x 1.11 Inch Depth x 4.06 Inch Height; Temperature Rating -40 to 60 Deg C; Applicable Standard NEMA WD-1/6, ANSI C-73
• Catalog Number: 8300-I
• Type: Duplex
• Constructional Feature: Impact Resistant
• Configuration: 5-20R
• Voltage Rating: 125 Volt
• Current Rating: 20 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: 20 AMP, 125 VOLT, EXTRA HEAVY DUTY HOSPITAL GRADE, DUPLEX RECEPTACLE, STRAIGHT BLADE, SELF GROUNDING, IVORY
• Category: Receptacles & Surge Protectors
• Full Technical Description: Duplex Type; Thermoplastic Nylon (Body/Face) Material; Ivory Color; 5-20R Configuration; 3 Wire(S); Extra Heavy Duty Hospital Grade; UL 498, CSA C22.2, NOM 057 Approval; 125 Volt Voltage Rating; 20 Amp Current Rating; Self-Grounding; 2 Pole(S); Impact Resistant; Back, Side Wiring; Overall Dimension 1.53 Inch Width X 1.11 Inch Depth X 4.06 Inch Height; Temperature Rating -40 to 60 Deg C; Applicable Standard NEMA Wd-1/6, ANSI C-73
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 078477818626
• SKU Name: lev 8300i
