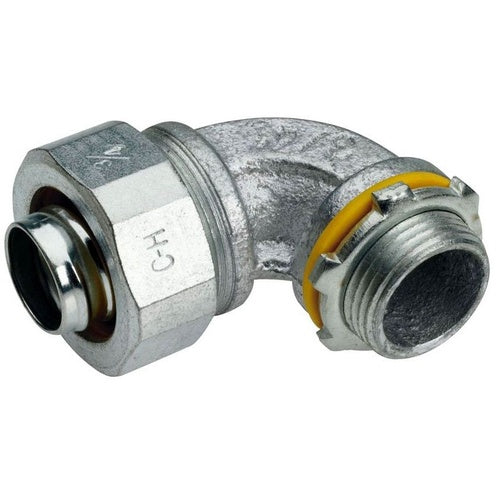

Crouse-Hinds LT5090G-SA 1/2" Liquidtight 90D Connector

Overview

Crouse-Hinds LT5090G-SA 1/2" Liquidtight 90D Connector

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES LIQUIDATOR LIQUIDTIGHT CONNECTOR, FMC, 90 ANGLE, ALUMINUM GROUND LUG, NON-INSULATED, #4-14 AWG LUG SIZE, ALUMINUM, 1/2"
• Full Technical Description: 90 Degree Type; Natural Aluminum (Body), Steel (Ferrule), Polyethylene (Gland Nut Sealing Ring), Thermoplastic Elastomer (Sealing Gasket), Steel/Aluminum (Locknut) Material; Flexible Metallic Conduit Used on; UL 467/514B, CUL, CSA C22.2 Approval; 25 Standard Package; 1/2 Inch Trade Size; Non-Insulated With Aluminum Grounding Lug Throat Type; LIQUIDATOR[TM] Brand; Lug Wire Size 14 to 4 AWG; Constructional Feature Liquid/Rain/Oil/Dust Tight, Corrosion Resistant; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Commercial, Industrial, Wet Location, Hazardous/Classified Location; Applicable Standard Nec/Cec; LT Model
• Manufacturer: EATON CROUSE-HINDS COMMERCIAL
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121405
• UPC 12 Digit: 784564350503
• SKU Name: midwest lt5090gsa

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
