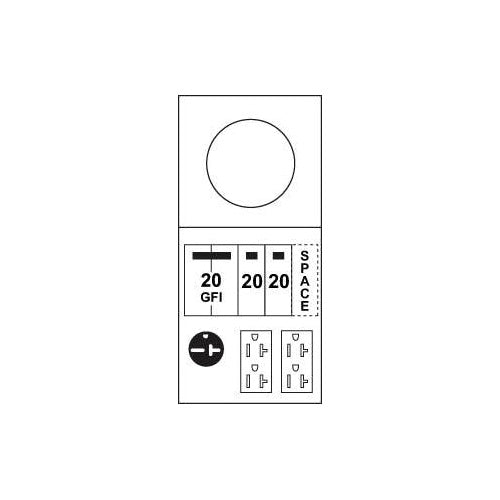

Midwest R038C033 100A Surface Metered 20/20-GFCI/20-GFCI

Overview

High-strength construction for enhanced durability, Precision-engineered for optimal performance, Corrosion-resistant materials for extended lifespan

Product Specifications

• UPC: 78456720815
• Second Position Circuit Breaker Type: CB120
• Third Position Circuit Breaker Type: CB120
• Wire Size: 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid,
• Material: G90 Galvanized Steel
• Finish: Zinc Coated
• Enclosure: NEMA 3R
• Approval: UL, CUL
• Additional Information: Applicable Standard NEMA, NEC; Voltage Rating 120 V; Cabinet Dimension 9-3/4 Inch W x 5-3/16 Inch D x 30 Inch H; Mounting Surface
• Catalog Number: R038C033
• Type: Metered Ringless
• Current Rating: 100 Ampere
• Circuit Configuration: 1-Phase
• Left Position Receptacle Type: 6-20R
• Center Position Receptacle Type: 5-20R2GFCI
• Right Position Receptacle Type: 5-20R2GFCI
• First Position Circuit Breaker Type: GFI220
• Catalog Description: MIDWEST ELECTRICS RV EQUIPMENT ARE A MEANS OF PROVIDING POWER REQUIRED BY VARIOUS RV PARKS.RV EQUIPMENT OFFER ONE OR MORE RECEPTACLES, WITH OVERCURRENT PROTECTION, OPTIONAL METERING, AND/OR PEDESTAL MOUNTING FUNCTIONS, IN A SINGLE ENCLOSURE OF G-90 ZINC-COATED STEEL. THE NEMA 3R RAINPROOF ENCLOSURE IS LOCKABLE AND ENGINEERED TO PROVIDE MAXIMUM PROTECTION AGAINST WEATHER, VANDALISM, AND NORMAL FIELD USE.
• Category: Metered Power Outlet Panels
• Full Technical Description: Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; GFI220 First Position Circuit Breaker Type; 6-20R Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB120 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; 5-20R2GFCI Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120 V; Cabinet Dimension 9-3/4 Inch W X 5-3/16 Inch D X 30 Inch H; Mounting Surface
• Manufacturer: Midwest Electric Products, Inc.
• Manufacturer Brand: Midwest Electric Products, Inc.
• Sub Category: Outdoor Surface Mount Power Outlet Panel
• Unspsc: 23153407
• UPC 12 Digit: 784567208153
• SKU Name: R038C033 MIDWEST
