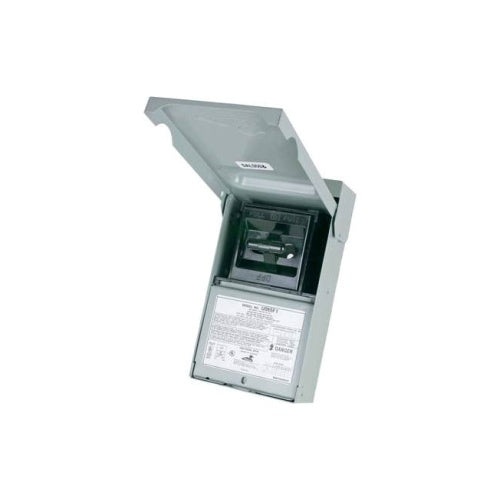

Midwest U065F1 60A General Duty Acd F 10Hp Steel N3R

Overview

High load capacity for demanding applications, Corrosion-resistant finish for enhanced durability, Easy installation and maintenance

Product Specifications

• UPC: 78456730005
• Wire Size: 14 to 8 AWG Line/Load and 12 to 8 AWG Equipment Ground Solid, 14 to 2 AWG Line/Load and 12 to 2 AWG Equipment Ground Stranded (Copper), 12 to 8 AWG Line/Load/Equipment Ground Solid, 12 to 2 AWG Line/Load/Equipment Ground Stranded (Aluminum)
• Size: 5 Inch Width x 2-3/4 Inch Depth x 9 Inch Height
• Approval: UL (Canada and US), CUL
• Additional Information: Interrupt Rating 10 Kiloamp
• Catalog Number: U065F1
• Type: Disconnect
• Voltage Rating: 240 Volt AC 1-Phase
• Current Rating: 60 Amp
• Power Rating: 10 HP
• Fuse Provision: Fusible
• Enclosure: NEMA 3R
• Enclosure Material: G90 Galvanized Steel
• Catalog Description: METALLIC, FUSIBLE DISCONNECTS ARE AVAILABLE IN 30 AND 60 AMPERE MODELS. PULLERS ARE REMOVABLE OR REINSTALLABLE IN THE OFF POSITION FOR USER SAFETY DURING EQUIPMENT MAINTENANCE. LISTED FOR USE AS SERVICE ENTRANCE.
• Category: Fusible Disconnect Safety Switches
• Full Technical Description: Air Conditioner Disconnect Type; 5 Inch Width X 2-3/4 Inch Depth X 9 Inch Height Size; 14 to 8 AWG Line/Load and 12 to 8 AWG Equipment Ground Solid, 14 to 2 AWG Line/Load and 12 to 2 AWG Equipment Ground Stranded (Copper), 12 to 8 AWG Line/Load/Equipment Ground Solid, 12 to 2 AWG Line/Load/Equipment Ground Stranded (Aluminum) Wire Size; G90 Galvanized Steel Enclosure Material; UL (Canada and Us), CUL Approval; 120/240 Volt AC 1-Phase Voltage Rating; NEMA 3R Enclosure; 60 Amp Current Rating; 10 HP Power Rating; Fusible Fuse Provision; Interrupt Rating 10000 Amp
• Manufacturer: Midwest Electric Products, Inc.
• Manufacturer Brand: Midwest Electric Products, Inc.
• Sub Category: Air Conditioner Safety/Disconnect Switch
• Unspsc: 39122233
• UPC 12 Digit: 784567300055
• SKU Name: MIDWEST U065F1
