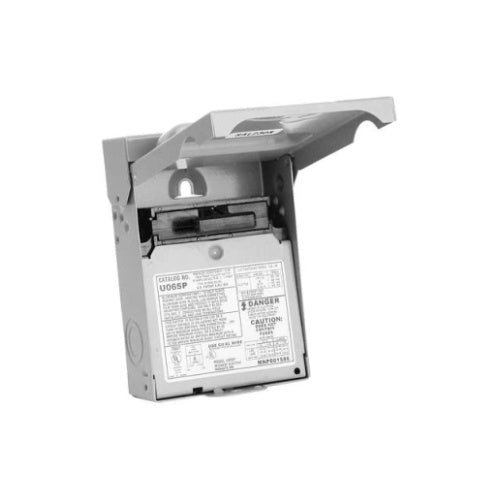

Midwest U065P 60A General Duty Acd Non-Fused 10Hp Steel N3R

Overview

Midwest U065P 60A General Duty Acd Non-Fused 10Hp Steel N3R

Product Specifications

• UPC: 78456730003
• Wire Size: 14 to 8 AWG Solid, 14 to 2 AWG Stranded (Copper), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Aluminum)
• Size: 5 Inch Width x 2-1/8 Inch Depth x 7-1/4 Inch Height
• Approval: UL, CUL
• Additional Information: Cabinet Size 5 Inch x 7 Inch
• Catalog Number: U065P
• Type: Air Conditioner Disconnect
• Voltage Rating: 240 Volt AC 1-Phase
• Current Rating: 60 Amp
• Power Rating: 10 HP
• Fuse Provision: Non-Fusible
• Enclosure: NEMA 3R
• Enclosure Material: Metallic
• Catalog Description: METALLIC, NON-FUSIBLE DISCONNECT PULLERS ARE REMOVABLE OR REINSTALLABLE IN THE OFF POSITION FOR USER SAFETY DURING EQUIPMENT MAINTENANCE.
• Category: Non-Fusible Disconnect Safety Switches
• Full Technical Description: Air Conditioner Disconnect, Pull Out Type; 5 Inch Width X 2-1/8 Inch Depth X 7-1/4 Inch Height Size; Polyester Powder Coated G90 Galvanized Steel, Metallic Enclosure Material; UL (Canada and Us), CUL Approval; 120/240 Volt AC 1-Phase Voltage Rating; NEMA 3R Enclosure; 60 Amp Current Rating; 10 HP Power Rating; Non- Fusible Fuse Provision; Cabinet Size 5 Inch X 7 Inch; Interrupting Rating 10 Kiloamp
• Manufacturer: Midwest Electric Products, Inc.
• Manufacturer Brand: Midwest Electric Products, Inc.
• Sub Category: Air Conditioner Safety/Disconnect Switch
• Unspsc: 39122233
• UPC 12 Digit: 784567300031
• SKU Name: midwest u065p
