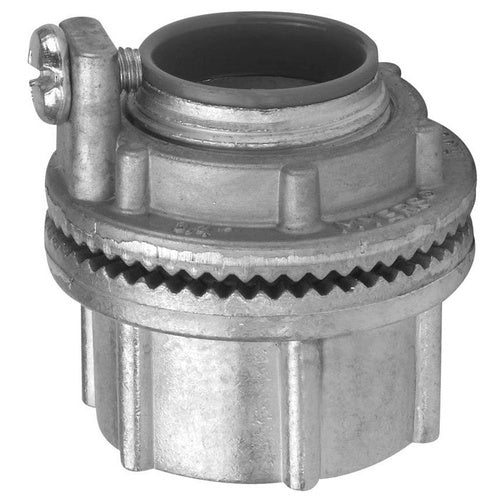

Crouse-Hinds STAG8 3" Alum Insulated Ground Hub

Overview

Crouse-Hinds STAG8 3" Alum Insulated Ground Hub

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES MYERS GROUND HUB, ALUMINUM, 3"
• Full Technical Description: Male Threaded, Tapered Female Threaded Type; Natural Aluminum (Body/Nut), Steel/Stainless Steel (Ground Screw) Material; 3.02 Inch Diameter X 4.37 Inch Height Size; Imc/Rigid Conduit Used on; UL 514B, CUL, CSA C22.2 Approval; Locknut Grounding Screw; 3 Inch Trade Size; NEMA 2/3/3R/4/4X/12, IP66, Vibrationproof, Chemical Resistance, Water/Dust Tight; Insulated Throat Type; MYERS[TM], SCRU-TITE[R] Brand; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2, Class I Zone 1 Aex E II, Class I Zone 1 Ex E II; Copper Wire Size 1/0 AWG (CSA), 6 AWG (UL); Application Hazardous Location; Applicable Standard Nec/Cec, IEC; STAG Model
• Manufacturer: EATON CROUSE-HINDS MYERS HUBS
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 784731101129
• SKU Name: myers stag8

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
