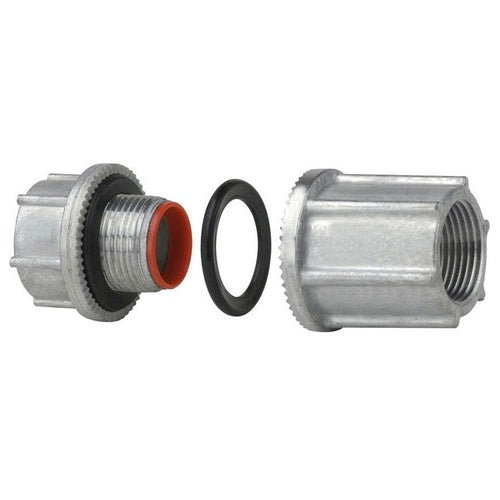

Crouse-Hinds STTB4 1-1/4" Thru Bulkhead Fitting

Overview

Crouse-Hinds STTB4 1-1/4" Thru Bulkhead Fitting

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES MYERS THROUGH BULKHEAD FITTING, ZINC, 1-1/4"
• Full Technical Description: Male Threaded, Tapered Female Threaded, Bulkhead Type; Natural Zamek 2/3 Zinc (Body) Material; 2.37 Inch Diameter X 1.71 Inch Height Size; Imc/Rigid Conduit Used on; UL 514B, CUL, CSA C22.2 Approval; Grounding; 1-1/4 Inch Trade Size; NEMA 2/3/3R/4/4X/12, IP66, Vibrationproof, Chemical Resistance, Water/Dust Tight; Insulated Throat Type; MYERS[TM] Brand; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2, Class I Zone 1 Aex E II, Class I Zone 1 Ex E II; Application Hazardous Location; Applicable Standard Nec/Cec, IEC; Application Non-Hazardous Location; STTB Model
• Manufacturer: EATON CROUSE-HINDS MYERS HUBS
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 784731100726
• SKU Name: myers sttb4

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
