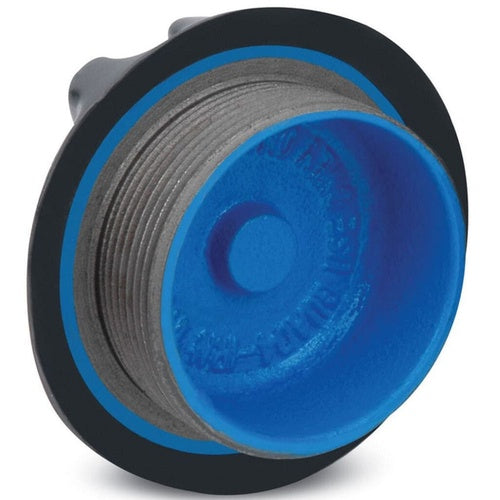

Ocal GUA06-G PVC Coated Cover 1/2" To 1" Aluminum Gray

Overview

Ocal GUA06-G PVC Coated Cover 1/2" To 1" Aluminum Gray

Product Specifications

• UPC: 70450838355
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G
• Used On: GUA Series Conduit Outlet Box
• Approval: UL 514A/886, CSA C22.2
• Additional Information: Application Wet/Hazardous Location
• Catalog Number: GUA06-G
• Brand Name: Blue[TM]
• Model: GUA
• Installation: External Threaded
• Hub Size: 1/2 Inch
• Cover Opening Diameter: 3 Inch
• Material: Die-Cast Aluminum
• Finish: Gray PVC Coated
• Catalog Description: PVC DOUBLE-COATED ALUMINUM COVER ONLY, FOR HAZARDOUS LOCATION FITTINGS, GUA SERIES, PIPE SIZES 1/2 INCH/16 METRIC TO 1 INCH/27 METRIC, COVER OPENING 3.00 INCH/76.20 MILLIMETERS, DIE CAST ALUMINUM, GRAY
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: Die-Cast Aluminum Material; Gray PVC Coated Finish; Gua Series Conduit Outlet Box Used on; 1/2 Inch Hub Size; External Threaded Installation; UL 514A/886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G Enclosure; 3 Inch Cover Opening Diameter; OCAL-BLUE[R] Brand; Application Wet/Hazardous Location; GUA Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Conduit Outlet Box Cover
• Unspsc: 39121304
• UPC 12 Digit: 704508383558
• SKU Name: ocal gua06g

Resources

• Manufacturer Spec Sheet
