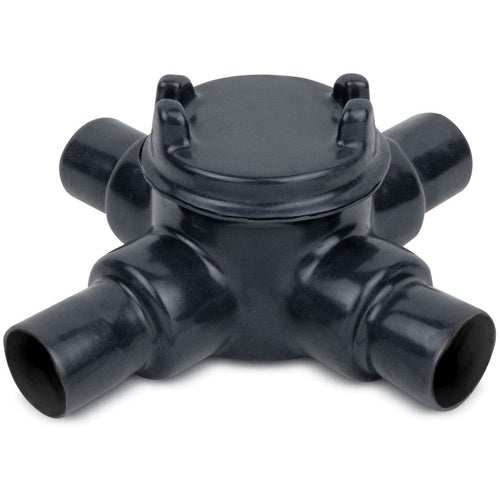

Ocal GUAX49-G Conduit Box X-Shape 1-1/4" Opening 5" Gray

Overview

Ocal GUAX49-G Conduit Box X-Shape 1-1/4" Opening 5" Gray

Product Specifications

• UPC: 70450838660
• Cover Opening Diameter: 5 INCH
• Material: HOT DIP GALVANIZED, BLUE URETHANE 2 MIL DOUBLE COATED STEEL BODY INTERIOR; HOT DIP GALVANIZED, BLUE URETHANE 2 MIL DOUBLE COATED, PVC 40 MIL COATED STEEL BODY EXTERIOR
• Additional Information: COLOR GRAY
• Catalog Number: GUAX49-G
• Brand Name: Ocal[R]
• Model: GUA
• Hub Size: 1 1/4 INCH
• Number Of Hubs: 4
• Hub Location: (4) SIDE
• Shape: ROUND
• Cover Type: EXTERNALLY THREADED
• Catalog Description: PVC DOUBLE-COATED CONDUIT OUTLET BOX FOR HAZARDOUS LOCATIONS, GUAX TYPE - X SHAPE, PIPE SIZE 1-1/4 INCH/35 METRIC, BOX IS DUCTILE IRON WITH ZINC PLATING, COVER IS DIE CAST ALUMINUM, COVER OPENING 5.00 INCH/127.00 MILLIMETERS, GRAY
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: Hot Dip Galvanized, Blue Urethane 2 mil Double Coated Steel Body Interior; Hot Dip Galvanized, Blue Urethane 2 mil Double Coated, PVC 40 mil Coated Steel Body Exterior Material; Round Shape; 1 1/4 Inch Hub Size; 4 Hub(S); Externally Threaded Cover Type; (4) Side Hub Location; 5 Inch Cover Opening Diameter; OCAL[R] Brand; Color Gray; GUA Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121331
• UPC 12 Digit: 704508386603
• SKU Name: ocal guax49g
