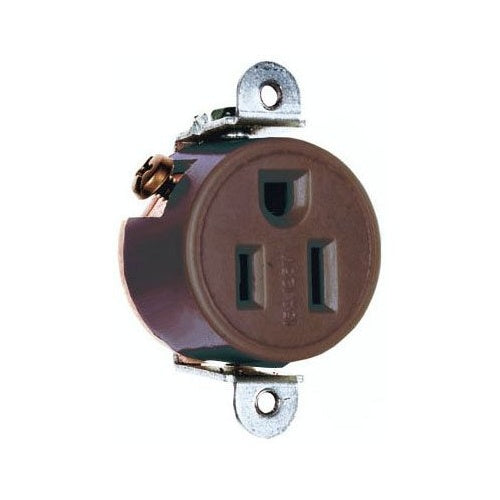

P&S 5258 Single Receptacle 15A 125V Short Strp Side Wire

Overview

Heavy-duty construction for enhanced durability, High-performance components for maximum efficiency, Easy integration with existing systems, Corrosion-resistant finish for prolonged lifespan

Product Specifications

• UPC: 78500752580
• Ground Type: Automatic Grounding
• Color: Brown
• Wiring: Side
• Grade: Specification
• Approval: UL 498, CSA C22.2
• Additional Information: Applicable Standard NEMA WD-1/WD-6; Overall Dimension 1.49 Inch W x 1 Inch D x 7.75 Inch H
• Catalog Number: 5258
• Type: Single, Heavy-Duty
• Constructional Feature: Corrosion Resistant
• Configuration: 5-15R
• Voltage Rating: 125 VAC
• Current Rating: 15 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: SHORT STRAP SPEC GRADE SINGLE RECEPTACLE, SIDE WIRE, 15A 125V
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single, Heavy Duty Type; Zinc Plated Steel (Strap) Material; Brown Color; NEMA 5-15R Configuration; 3 Wire(S); Commercial, Specification Grade; UL 498, CSA C22.2 Approval; 125 Volt Voltage Rating; 15 Amp Current Rating; Automatic Grounding; 2 Pole(S); Corrosion Resistant; Side Wiring; Wire Size 14 to 10 AWG; Minimum Dielectric Strength 2000 Volt; Overall Dimension 1.49 Inch Width X 1 Inch Depth X 1.75 Inch Height; Screw Spacing 1.75 Inch
• Manufacturer: Pass & Seymour Inc. Wiring Devices & Accessories
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 785007525809
• SKU Name: P&S 5258
