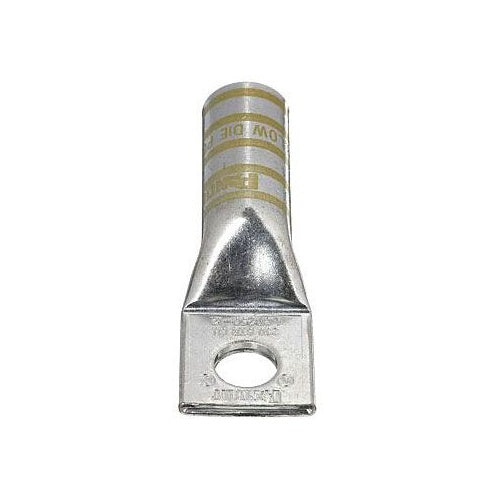

Panduit LCB250-12-X Copper Lug 250Mcm .5" Stud Nowdw Pk10

Overview

Panduit LCB250-12-X Copper Lug 250Mcm .5" Stud Nowdw Pk10

Product Specifications

• UPC: 07498390145
• Pad Size: 1.17 Inch W x 0.14 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Yellow
• Die Index: P62, 16 (Burndy), 62 (T and B)
• Material: Electro Tin Plated Copper
• Overall Length: 3.32 Inch
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Temperature Rating 90 Deg C
• Catalog Number: LCB250-12-X
• Brand Name: Pan-Lug[TM]
• Model: LCB
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 250 KCMIL
• Barrel Type: Long, Straight
• Barrel Length: 1.61 Inch
• Catalog Description: ONE-HOLE, LONG BARREL LUG, 250 KCMIL CABLE, 1/2 STUD HOLE.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Yellow Color; 3.32 Inch Overall Length; 1.61 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 kV Voltage Rating; 250 kcmil Conductor Size; 1/2 Inch Stud Size; P62, 16 (Burndy), 62 (T and B) Die Index; 1.17 Inch W X 0.14 Inch Thk Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; LCB Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983901456
• SKU Name: pand lcb25012x
