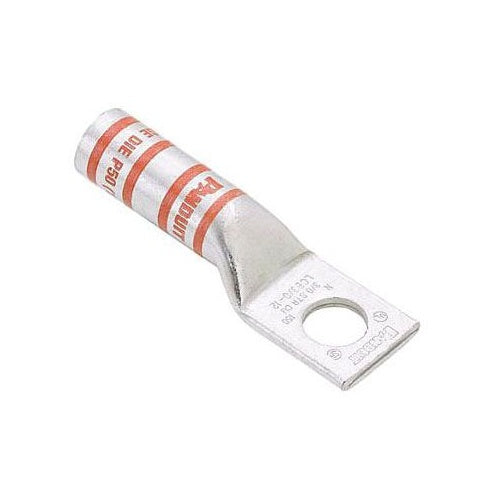

Panduit LCB500-12-6 Copper Lug 500Kcmil Long 1/2 Stud Pkg 6

Overview

Panduit LCB500-12-6 Copper Lug 500Kcmil Long 1/2 Stud Pkg 6

Product Specifications

• UPC: 07498390164
• Pad Size: 1.54 Inch W x 0.22 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Brown
• Die Index: P87, 20 (Burndy), 87 (T and B)
• Material: Electro Tin Plated Copper
• Overall Length: 4.53 Inch
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Temperature Rating 90 Deg C
• Catalog Number: LCB500-12-6
• Brand Name: Pan-Lug[TM]
• Model: LCB
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 500 KCMIL
• Barrel Type: Long, Straight
• Barrel Length: 2.2 Inch
• Catalog Description: ONE-HOLE, LONG BARREL LUG, 500 KCMIL CABLE, 1/2 STUD HOLE.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Brown Color; 4.53 Inch Overall Length; 2.2 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 kV Voltage Rating; 500 kcmil Conductor Size; 1/2 Inch Stud Size; P87, 20 (Burndy), 87 (T and B) Die Index; 1.54 Inch W X 0.22 Inch Thk Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; LCB Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983901647
• SKU Name: pand lcb500126
