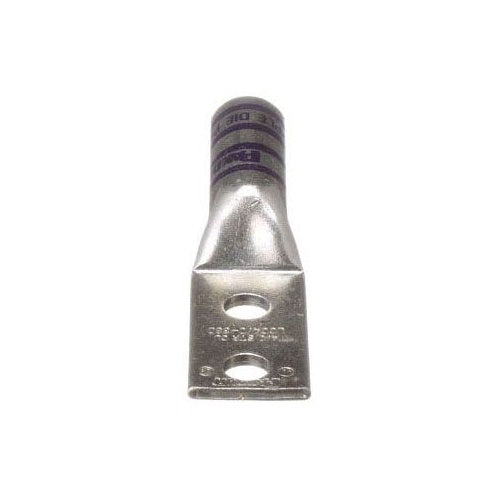

Panduit LCC4/0-38D-X Copper Lug 2-Hole 4/0Awg 3/8 Stud 1 Pkg 10

Overview

Panduit LCC4/0-38D-X Copper Lug 2-Hole 4/0Awg 3/8 Stud 1 Pkg 10

Product Specifications

• UPC: 07498338287
• Pad Size: 1.06 Inch W x 0.14 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 Inch
• Stud Size: 3/8 Inch
• Color: Purple
• Die Index: P54, 15 (Burndy), 54 (T and B)
• Material: Electro Tin Plated Copper
• Overall Length: 3.99 Inch
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: LCC4/0-38D-X
• Brand Name: Pan-Lug[TM]
• Model: LCC
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 4/0 AWG
• Barrel Type: Long, Straight
• Barrel Length: 1.56 Inch
• Catalog Description: TWO-HOLE, LONG BARREL LUG, 4/0 AWG WIRE, 3/8 STUD HOLE, 1 HOLE SPACING.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Purple Color; 3.99 Inch Overall Length; 1.56 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 kV Voltage Rating; 4/0 AWG Conductor Size; 3/8 Inch Stud Size; P54, 15 (Burndy), 54 (T and B) Die Index; 1.06 Inch W X 0.14 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Long, Straight Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; RoHS Compliant; LCC Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983382873
• SKU Name: pand lcc4/038dx

Resources

• Manufacturer Spec Sheet
• Technical Drawing
