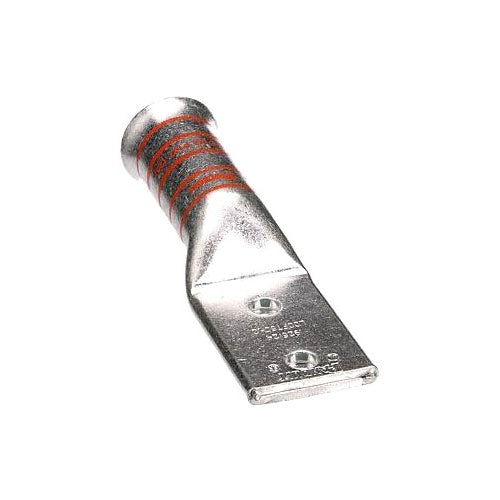

Panduit LCCF750-12-3 Copper Lug 2-Hole 750Kcmil Flared 1/2 Stud Pkg 3

Overview

Panduit LCCF750-12-3 Copper Lug 2-Hole 750Kcmil Flared 1/2 Stud Pkg 3

Product Specifications

• UPC: 07498375322
• Pad Size: 2.17 Inch W x 0.32 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Orange
• Die Index: P107
• Material: Electro Tin Plated Copper
• Overall Length: 7.29 Inch
• Approval: UL, CSA
• Additional Information: Temperature Rating 90 Deg C
• Catalog Number: LCCF750-12-3
• Brand Name: Pan-Lug[TM]
• Model: LCCF
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 777.7 KCMIL (Flex Diesel Locomotive)
• Barrel Type: Long, Straight, Belled
• Barrel Length: 3 Inch
• Catalog Description: TWO-HOLE, LONG FLARED BARREL, 750 KCMIL CABLE, 1/2 BOLT HOLES, 1.75 HOLE SPACING, NEMA HOLE SIZES AND SPACING.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Orange Color; 7.29 Inch Overall Length; 3 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 777.7 kcmil (Flex Diesel Locomotive) Conductor Size; 1/2 Inch Stud Size; P107 Die Index; 2.17 Inch W X 0.32 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight, Belled Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; LCCF Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983753222
• SKU Name: pand lccf750123
