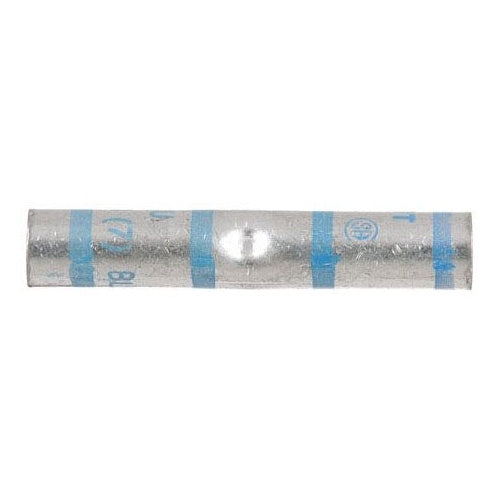

Panduit SCS6-L Copper Butt Splice #6Awg Pkg 50

Overview

Panduit SCS6-L Copper Butt Splice #6Awg Pkg 50

Product Specifications

• UPC: 07498390305
• Barrel Type: Standard
• Length: 1.75 Inch
• Inner Diameter: 0.22 Inch
• Outer Diameter: 0.31 Inch
• Body Material: Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 20.6 Millimeter
• Catalog Number: SCS6-L
• Brand Name: Pan-Lug[TM]
• Model: SCS
• Type: Butt
• Voltage Rating: 35 Kilovolt
• Conductor Size: 6 AWG
• Conductor Material: Copper
• Color Code: Blue
• Catalog Description: THE SCS6-L COPPER COMPRESSION LUG, STANDARD BARREL, HAS COLOR-CODED BARRELS MARKED WITH PANDUIT AND SPECIFIED COMPETITOR DIE INDEX NUMBERS FOR PROPER CRIMP DIE SELECTION. AN INSPECTION WINDOW AIDS TO VISUALLY ASSURE FULL CONDUCTOR INSERTION, AND THE TIN-PLATE MATERIAL HELPS TO INHIBIT CORROSION. UL LISTED AND CSA CERTIFIED TO 35 KV AND TEMPERATURE RATED TO 90C.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; 1.75 Inch; 0.22 Inch Inner Diameter; 0.31 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; Tin Plated Copper Body Material; 6 AWG Conductor Size; Blue Color Code; Standard Barrel Type; Pan-LUG[TM] Brand; RoHS Compliant; Wire Strip Length 20.6 Millimeter; SCS Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 074983903054
• SKU Name: pand scs6l
