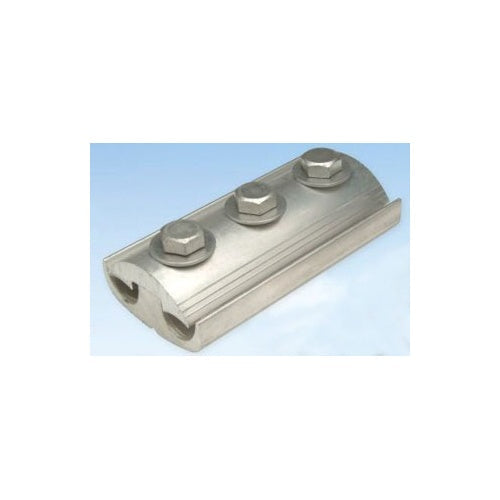

Penn-Union PCAA-35 1000 Parallel Connector

Overview

Penn-Union PCAA-35 1000 Parallel Connector

Product Specifications

• Category: Large Terminals & Connectors
• Full Technical Description: Distribution/Service Entrance Clamp Type; Extruded High Strength Aluminum Alloy Body, Anodized High Strength Aluminum/Steel Bolt, High Strength Aluminum Flat Washer Material; 3/0 AWG Stranded (Armor Rod), 397.5 kcmil (Acsr/Armor Rod), 400 MCM min. Run Conductor Size; 3/0 AWG Stranded, 397.5 kcmil (Armor Rod); 795 kcmil (ACSR); 1000 MCM Max. Run Conductor Size; 3/0 AWG Stranded (Armor Rod), 397.5 kcmil (Acsr/Armor Rod), 400 MCM min. Tap Conductor Size; 3/0 AWG Stranded, 397.5 kcmil (Armor Rod); 795 kcmil (ACSR); 1000 MCM Max. Tap Conductor Size; Parallel Groove, Three Bolt With Washer Installation; ACSR Conductor Material; PCAA Model
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 785037490603
• SKU Name: pcaa35 pennunion

Resources

• Manufacturer Spec Sheet
