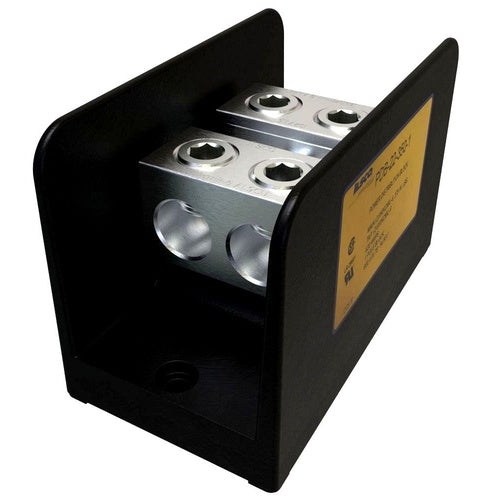

ILSCO PDB-22-350-1 Splicer/Reducer

Overview

Ilsco PDB-22-350-1 Splicer/Reducer

Product Specifications

• UPC: 78366971097
• Number Of Secondary Openings Per Pole: 2
• Secondary Opening Wire Size: 6 AWG to 350 KCMIL
• Conductor Material: Aluminum/Copper
• Size: 3 Inch L x 5-1/2 Inch W x 3-1/2 Inch H
• Temperature Rating: 90 Deg C
• Connector Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Approval: UL 1059, CSA
• Additional Information: Hex Size 3/8 Inch (Primary), 3/8 Inch (Secondary)
• Catalog Number: PDB-22-350-1
• Model: PDB
• Type: Standard
• Voltage Rating: 600 V
• Current Rating: 620 Ampere
• Number Of Poles: 1
• Number Of Primary Openings Per Pole: 2
• Primary Opening Wire Size: 6 AWG to 350 KCMIL
• Catalog Description: POWER DISTRIBUTION BLOCK, DUAL RATED, LINE CONDUCTOR RANGE 350-6, LOAD RANGE 350-6, 2 PORTS PER POLE LINE SIDE, 2 PORTS PER POLE LOAD SIDE, 1 POLE, UL, CSA
• Category: Terminal Blocks & Accessories
• Full Technical Description: Standard Type; 3 Inch L X 5-1/2 Inch W X 3-1/2 Inch H Size; Aluminum/Copper Conductor Material; UL 1059, CSA Approval; 600 V Voltage Rating; 620 Ampere Current Rating; 90 Deg C Temperature Rating; 1 Pole(S); Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy Connector Material; 6 AWG to 350 kcmil Secondary Opening Wire Size; 6 AWG to 350 kcmil Primary Opening Wire Size; 2 Secondary Openings Per Pole; 2 Primary Openings Per Pole; Valox [R] Brand; Hex Size 3/8 Inch (Primary), 3/8 Inch (Secondary); PDB Model
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Sub Category: Power Distribution Block
• Unspsc: 39121408
• UPC 12 Digit: 783669710977
• SKU Name: pdb223501 ilsco
