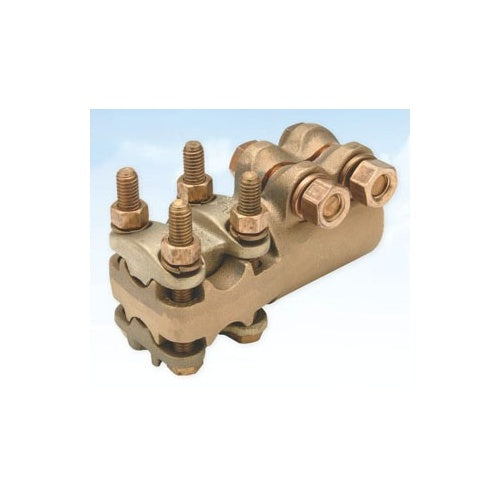

Penn-Union CSR-0716-100-2 3/4 Bronze Stud Connector

$333.89
$333.89

Industrial Fittings Now

Penn-Union CSR-0716-100-2 3/4 Bronze Stud Connector

$333.89
Penn-Union CSR-0716-100-2 3/4 Bronze Stud Connector

Product Description

Overview

Superior abrasion and chemical resistance, High load-bearing capacity, Designed for extreme temperature applications, Minimizes friction for enhanced efficiency

Product Specifications

  • Category: Large Terminals & Connectors
  • Full Technical Description: High Copper Content Bronze Material; 5-5/8 Inch L X 2-7/8 Inch W Size; 2 AWG Solid (Small Groove), 350 MCM (Large Groove) min. Conductor Size; 350 MCM (Small Groove), 1000 MCM (Large Groove) Max. Conductor Size; Right Angled/Straight Connection Type; 3/4 Inch-16 TPI Stud Size; 3/8 to 3/4 Inch IPS Tube Size; Includes Silicon Bronze Bolt, Nut, Lockwasher; Number of Cable Two; CSR-2 Model
  • Manufacturer: Penn-Union Corp.
  • Manufacturer Brand: Penn-Union Corp.
  • Sub Category: Equipment Stud To Cable/Tube
  • Unspsc: 39121408
  • UPC 12 Digit: 785037270588
  • SKU Name: PU CSR07161002
