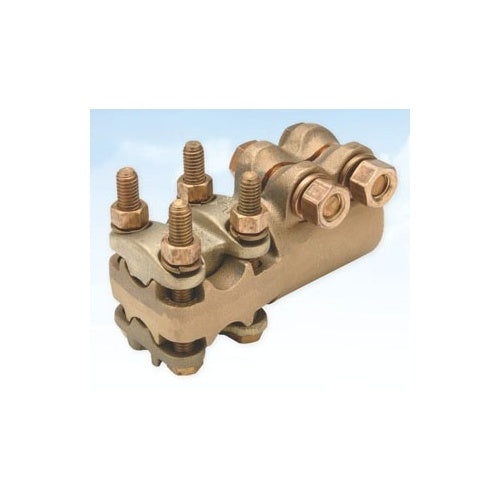

Penn-Union CSR-1212-100-2 1-1/4" Bronze Stud Connector

Name: Penn-Union CSR-1212-100-2 1-1/4" Bronze Stud Connector
Brand: Industrial Fittings Now
Price: 392.91 USD

Quantity

Industrial Fittings Now

Product Description

High wear resistance for prolonged life, Lightweight design for easy handling, Superior flexibility to adapt to various applications

Category: Large Terminals & Connectors
Full Technical Description: High Copper Content Bronze Material; 5-3/4 Inch L X 2-7/8 Inch W Size; 2 AWG Solid (Small Groove), 350 MCM (Large Groove) min. Conductor Size; 350 MCM (Small Groove), 1000 MCM (Large Groove) Max. Conductor Size; Right Angled/Straight Connection Type; 1-1/4 Inch-12 TPI Stud Size; 3/8 to 3/4 Inch IPS Tube Size; Includes Silicon Bronze Bolt, Nut, Lockwasher; Number of Cable Two; CSR-2 Model
Manufacturer: Penn-Union Corp.
Manufacturer Brand: Penn-Union Corp.
Sub Category: Equipment Stud To Cable/Tube
Unspsc: 39121408
UPC 12 Digit: 785037270687
SKU Name: PU CSR12121002
