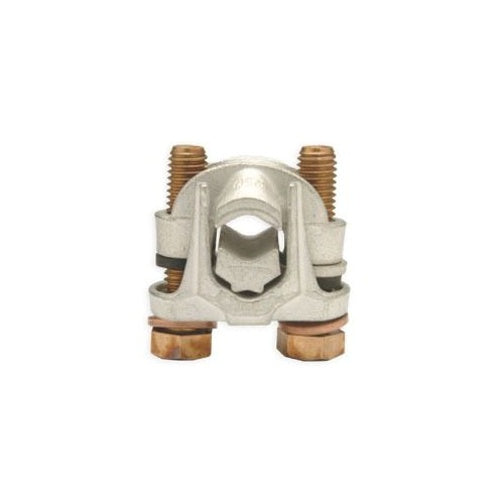

Penn-Union VTA-0 1/0-AWG Tap Connector & Spacer

Overview

High-pressure resistance for reliable operation, Corrosion-resistant materials for extended lifespan, Easy installation with standard tools

Product Specifications

• Category: Splicing & Terminating Kits
• Full Technical Description: Cast Tin Plated High Strength Bronze Body, Rubber Washer Material; 2 AWG Stranded (Copper), 1 AWG (ACSR), 1/0 AWG Stranded (Aluminum), 2/0 AWG Solid (Copper Weld) min. Run Conductor Size; 1 AWG (ACSR), 1/0 AWG Stranded (Copper), 1/0 AWG Stranded (Aluminum), 2/0 AWG Solid (Copper Weld) Max. Run Conductor Size; 10 AWG Stranded (Copper), 1 AWG (ACSR), 1/0 AWG Stranded (Aluminum), 2/0 AWG Solid (Copper Weld) min. Tap Conductor Size; 1 AWG (ACSR), 1/0 AWG Stranded (Copper), 1/0 AWG Stranded (Aluminum), 2/0 AWG Solid (Copper Weld) Max. Tap Conductor Size; Two Bolt With Spacer Bar Installation; Aluminum/Copper/Copper Weld/Acsr Conductor Material; UL Approval; VTA Model
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 785037752800
• SKU Name: VTA0 PENNUNION
