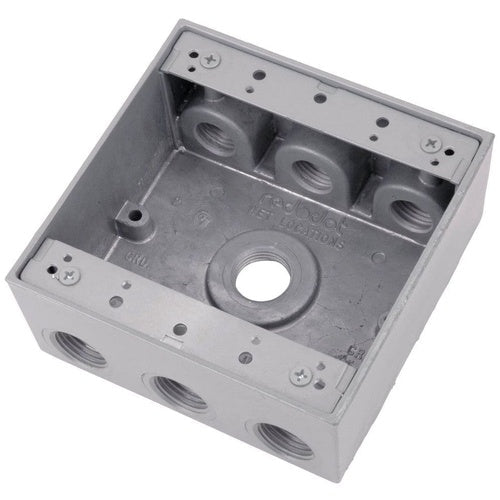

Red Dot 2IH7-1 2-Gang Weatherproof Box w/7 1/2" Hubs

Overview

Red Dot 2IH7-1 2-Gang Weatherproof Box w/7 1/2" Hubs

Product Specifications

• UPC: 04226939450
• Hub Location: (1) Back, (3) Each End
• Hub Size: 1/2 Inch
• Material: Die-Cast Aluminum
• Color: Silver
• Finish: Powder Coated
• Mounting: Surface
• Mounting Hardware: Lug
• Approval: UL
• Additional Information: Environmental Conditions Damp Location, Dry Location, Wet Location; Includes (2) Closure Plug, Ground Screw
• Catalog Number: 2IH7-1
• Model: 2IH7
• Height: 4-5/8 Inch
• Width: 4-9/16 Inch
• Depth: 2-1/16 Inch
• Capacity: 31.8 Cu Inch
• Number Of Gangs: 2
• Number Of Hubs: 7
• Catalog Description: TWO GANG UNIVERSAL WEATHERPROOF BOX, 30.3 CUBIC INCHES, HUB SIZE 1/2 INCH, SILVER, ALUMINUM, 7 OUTLETS WITH 3 ON TOP AND BOTTOM AND 1 ON BACK, PACK OF
• Category: Steel Outlet Boxes
• Full Technical Description: Die-Cast Aluminum Material; Powder Coated Finish; Silver Color; 4-9/16 Inch; 4-5/8 Inch; 2-1/16 Inch; 1/2 Inch Hub Size; 7 Hub(S); 2 Gang(S); UL Approval; Surface Mounting; 31.8 Cu Inch Capacity; Lug Mounting Hardware; (1) Back, (3) Each End Hub Location; DRY-TITE[R] Brand; Environmental Conditions Damp Location, Dry Location, Wet Location; Includes (2) Closure Plug, Ground Screw; 2IH7 Model
• Manufacturer: THOMAS & BETTS RED-DOT
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Weatherproof Device Box
• Unspsc: 39121305
• UPC 12 Digit: 042269394506
• SKU Name: rdot 2ih71

Resources

• Manufacturer Spec Sheet
