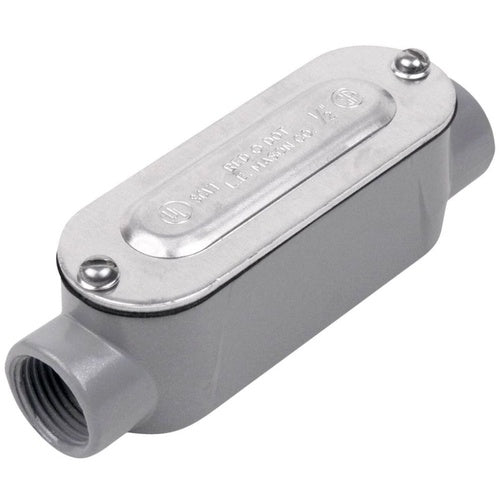

Red Dot DAC-5-CG Conduit Body Shelf Pk

Overview

Red Dot DAC-5-CG Conduit Body Shelf Pk

Product Specifications

• UPC: 04226900212
• Hub Size: 1-1/2 Inch
• Installation: Set Screw, Threaded
• Material: Powder Coated Urethane Die-Cast Aluminum
• Approval: UL E28688, CSA
• Used On: Rigid/IMC Conduit
• Additional Information: Includes Cover, Gasket
• Catalog Number: DAC-5-CG
• Brand Name: D-PAK[R]
• Model: A
• Access Opening: Straight Side
• Configuration: C
• Cover Type: Natural Stamped, Die-Cast Powder Coated Aluminum, Screw-On
• Hub Location: Straight
• Number Of Hubs: 2
• Catalog Description: 1-1/2 INCH THREADED D-PAK DIE CAST ALUMINUM THRU-FEED CONDUIT BODY, COVER & GASKET. FOR USE WITH RIGID/IMC CONDUIT.
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Powder Coated Urethane Die-Cast Aluminum Material; Rigid/Imc Conduit Used on; 1-1/2 Inch Hub Size; Set Screw, Threaded Installation; C Configuration; 2 Hub(S); UL E28688, CSA Approval; Natural Stamped, Die-Cast Powder Coated Aluminum, Screw-on Cover Type; Straight Hub Location; Straight Side Access Opening; Includes Cover, Gasket; A Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 042269002128
• SKU Name: rdot dac5cg

Resources

• Manufacturer Spec Sheet
