Rob Roy prhelb2x90x24

Overview

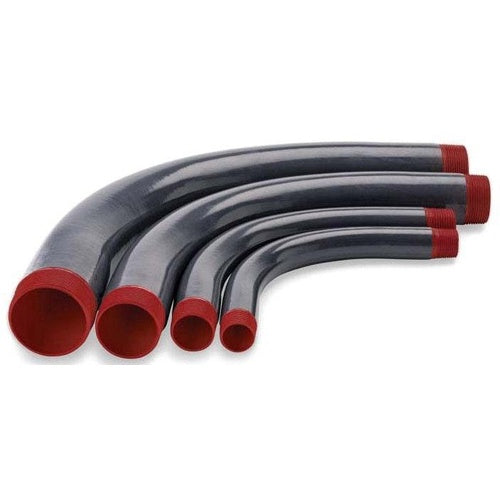

PRHELB2X90X24 - 2X90X24 LG Radius Elbow

Product Specifications

• Catalog Number: PRHELB2X90X24
• UPC / GTIN: 784011201846
• Manufacturer: Plastibond
• UNSPSC: N/A
• Full Technical Description: ELBOW, SPECIAL RADIUS TYPE; STEEL MATERIAL; 2 MIL RED URETHANE COATED INTERIOR, 40 MIL GRAY PVC COATED EXTERIOR FINISH; UL 6, CSA C22.2, UL (CANADA AND US), ETL APPROVAL; 2 INCH TRADE SIZE; EXTERNAL THREADED END TYPE; 90 DEGREE BEND ANGLE
• Material: Steel
• Finish: 2 Mil Red Urethane Coated Interior, 40 Mil Gray PVC Coated Exterior
• Additional Information: Size 2.083 Inch ID x 2.455 Inch OD; Threaded Protector Cap Color Blue
• Description: 2X90X24 LG RADIUS ELBOW
• Extra Long Description: SPECIAL LARGE RADIUS TYPE; STEEL MATERIAL; 2 MIL RED URETHANE (INTERIOR AND THREAD)/40 MIL GRAY PVC (EXTERIOR) FINISH; UL (CANADA AND US), UL 6, CSA C22.2 APPROVAL; ISO 9001 APPLICABLE STANDARD; 1 PER PACK STANDARD PACKAGE; 2 INCH TRADE SIZE; EXTERNAL THREADED END TYPE; 90 DEGREE BEND ANGLE; 24 INCH BEND RADIUS; NIPPLE LENGTH 54 INCH; THREAD PROTECTOR COLOR BLUE; PRHELB MODEL
• Long Description: ELBOW, SPECIAL RADIUS TYPE; STEEL MATERIAL; 2 MIL RED URETHANE COATED INTERIOR, 40 MIL GRAY PVC COATED EXTERIOR FINISH; UL 6, CSA C22.2, UL (CANADA AND US), ETL APPROVAL; 2 INCH TRADE SIZE; EXTERNAL THREADED END TYPE; 90 DEGREE BEND ANGLE
• Product Type: Elbow
• Bend Angle: 90 Degree
• Bend Radius: 24 INCH
• End Type: EXTERNAL THREADED
• Manufacturers Part Number: PRHELB-2X90X24
• Model: PRHELB
• GTIN: 00784011201846
• UPC: 784011201846
• Type: SPECIAL RADIUS
• Trade Size: 2 INCH
• Weight per each: 27
• Carton: 1
• Approval: UL 6, CSA C22.2, UL (Canada and US), ETL
