Rob Roy prhelb4x90x24

Overview

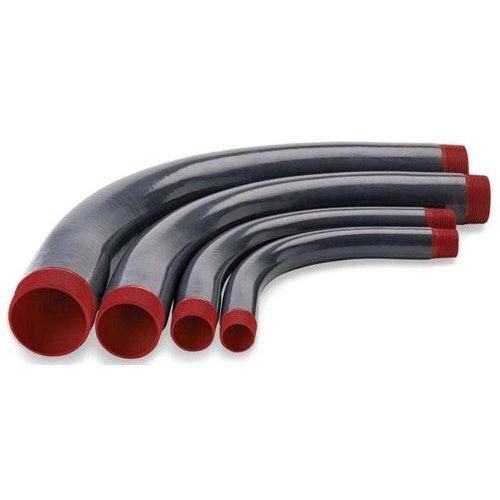

PRHELB4X90X24 - 4" 90D 24"R PVC Coated GRC Elbow

Product Specifications

• Catalog Number: PRHELB4X90X24
• UPC / GTIN: 784011202928
• Manufacturer: Plastibond
• UNSPSC: N/A
• Full Technical Description: ELBOW, SPECIAL RADIUS TYPE; STEEL MATERIAL; 2 MIL RED URETHANE COATED INTERIOR, 40 MIL GRAY PVC COATED EXTERIOR FINISH; UL 6, CSA C22.2, UL (CANADA AND US), ETL APPROVAL; 4 INCH TRADE SIZE; EXTERNAL THREADED END TYPE; 90 DEGREE BEND ANGLE
• Material: Steel
• Finish: 2 Mil Red Urethane Coated Interior, 40 Mil Gray PVC Coated Exterior
• Additional Information: Size 4.05 Inch ID x 4.58 Inch OD; Threaded Protector Cap Color Blue
• Description: 4" 90D 24"R PVC COATED GRC ELBOW
• Extra Long Description: SPECIAL LARGE RADIUS TYPE; STEEL MATERIAL; 2 MIL RED URETHANE (INTERIOR AND THREAD)/40 MIL GRAY PVC (EXTERIOR) FINISH; UL (CANADA AND US), UL 6, CSA C22.2 APPROVAL; ISO 9001 APPLICABLE STANDARD; 1 PER PACK STANDARD PACKAGE; 4 INCH TRADE SIZE; EXTERNAL THREADED END TYPE; 90 DEGREE BEND ANGLE; 24 INCH BEND RADIUS; NIPPLE LENGTH 57 INCH; THREAD PROTECTOR COLOR BLUE; PRHELB MODEL
• Long Description: ELBOW, SPECIAL RADIUS TYPE; STEEL MATERIAL; 2 MIL RED URETHANE COATED INTERIOR, 40 MIL GRAY PVC COATED EXTERIOR FINISH; UL 6, CSA C22.2, UL (CANADA AND US), ETL APPROVAL; 4 INCH TRADE SIZE; EXTERNAL THREADED END TYPE; 90 DEGREE BEND ANGLE
• Product Type: Elbow
• Bend Angle: 90 Degree
• Bend Radius: 24 INCH
• End Type: EXTERNAL THREADED
• Manufacturers Part Number: PRHELB-4X90X24
• Model: PRHELB
• GTIN: 00784011202928
• UPC: 784011202928
• Type: SPECIAL RADIUS
• Trade Size: 4 INCH
• Weight per each: 50.4
• Carton: 1
• Approval: UL 6, CSA C22.2, UL (Canada and US), ETL
