Rob Roy prll47

Overview

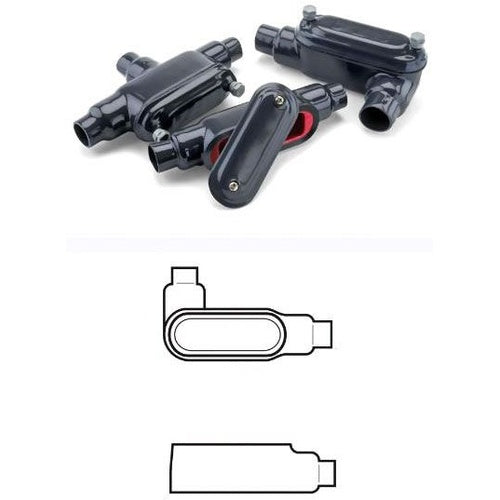

PRLL47 - 1-1/4 Form 7 LL Fitting

Product Specifications

• Catalog Number: PRLL47
• UPC / GTIN: 784011203840
• Manufacturer: Plastibond
• Type: Conduit Body
• UNSPSC: 39131708 - Electrical conduit fitting body
• Full Technical Description: CONDUIT BODY, 2 MIL RED URETHANE COATED INTERIOR/40 MIL GRAY PVC COATED EXTERIOR FERROUS METAL (BODY), STAINLESS STEEL (SCREW) MATERIAL; 2.35 INCH HEIGHT SIZE; RIGID CONDUIT USED ON; 1-1/4 INCH HUB SIZE; SCREW INSTALLATION; LL CONFIGURATION; 2 HUB(S)
• Access Opening: LEFT SIDE
• Cover Type: PVC Coated
• Hub Location: 90 Degree
• Material: 2 Mil Red Urethane Coated Interior/40 Mil Gray PVC Coated Exterior Ferrous Metal (Body), Stainless Steel (Screw)
• Number Of Hubs: 2
• Hub Size: 1-1/4 INCH
• Size: 2.35 Inch Height
• Additional Information: Applicable Standard ISO 9001
• Description: 1-1/4 FORM 7 LL FITTING
• Extra Long Description: 2 MIL RED URETHANE (INTERIOR)/40 MIL GRAY PVC COATED (EXTERIOR) FERROUS METAL MATERIAL; 2.35 INCH WIDTH SIZE; 1-1/4 INCH HUB SIZE; SCREW INSTALLATION; LL CONFIGURATION; 2 HUB(S); UL (CANADA AND US), UL 514A/514B/514D, CSA C22.2 APPROVAL; SELF-RETAINING STAINLESS STEEL SCREW COVER TYPE; 90 DEGREE HUB LOCATION; FORM 7 FORM TYPE; LEFT SIDE ACCESS OPENING; APPLICABLE STANDARD ISO 9001
• Long Description: CONDUIT BODY, 2 MIL RED URETHANE COATED INTERIOR/40 MIL GRAY PVC COATED EXTERIOR FERROUS METAL (BODY), STAINLESS STEEL (SCREW) MATERIAL; 2.35 INCH HEIGHT SIZE; RIGID CONDUIT USED ON; 1-1/4 INCH HUB SIZE; SCREW INSTALLATION; LL CONFIGURATION; 2 HUB(S)
• Product Type: Conduit Body
• Form Type: FORM 7
• GTIN: 00784011203840
• UPC: 784011203840
• Weight per each: 3
• Carton: 1
• Approval: UL (Canada and US), UL 514A/D, CSA C22.2, ETL
• Configuration: LL
• Installation: SCREW
• Used On: RIGID CONDUIT
