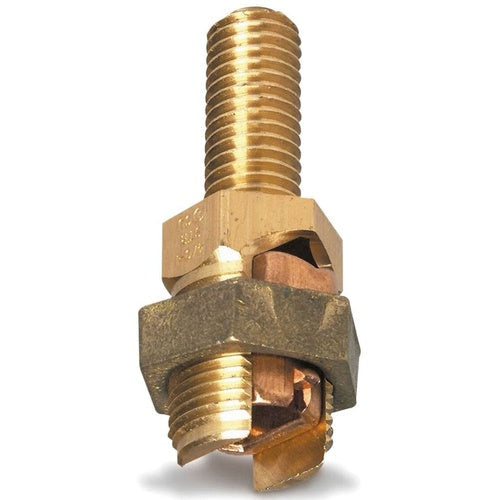

Blackburn SP3DL Service Post/Double 3-10 Str 2-10 Sol

Overview

Blackburn SP3DL Service Post/Double 3-10 Str 2-10 Sol

Product Specifications

• UPC: 78378680527
• Approval: UL
• Used On: Cable to Steel Structure/Fence Post/Transformer
• Additional Information: Includes Nut
• Catalog Number: SP3DL
• Model: SP-L
• Conductor Size: 10 to 2 AWG Solid, 10 to 3 AWG Stranded
• Number Of Conductors: 2
• Stud Diameter: 3/8 Inch-16 TPI
• Stud Length: 1-1/8 Inch
• Material: Bronze
• Standard Package: 400 per Carton
• Catalog Description: LONG STUD DOUBLE SERVICE POST CONNECTORS FOR CONDUCTORS 3 - 10 STRANDED, 2 - 10 SOLID, STUD SIZE 3/8 - 16 X 1 1/8
• Category: Large Terminals & Connectors
• Full Technical Description: Bronze Material; Cable to Steel Structure/Fence Post/Transformer Used on; 1-1/8 Inch Stud Length; UL Approval; 400 Per Carton Standard Package; 2 Conductor(S); 10 to 2 AWG Solid, 10 to 3 AWG Stranded Conductor Size; 3/8 Inch-16 TPI Stud Diameter; EZGROUND[TM] Brand; Includes Nut; SP-L Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Bar To Flat Surface Post
• Unspsc: 39121613
• UPC 12 Digit: 783786805273
• SKU Name: sp3dl blackburn

Resources

• Manufacturer Spec Sheet
