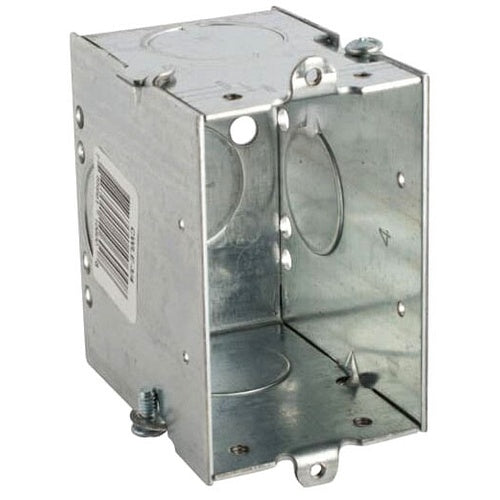

Steel City CWLE-3/4 Switch Box, 14Cu, Gangable, 3/4Ko Steel

Overview

Steel City CWLE-3/4 Switch Box, 14Cu, Gangable, 3/4Ko Steel

Product Specifications

• UPC: 78599110600
• Knockout Size: (1) 3/4 Inch Conduit Bottom, (2) 3/4 Inch Conduit Sides, (2) 3/4 Inch Conduit Ends
• Number Of Gangs: 1
• Material: Hot Rolled Pre-Galvanized AISI C-1008, ASTM G90-U 0.062 Inch Steel
• Clamp Type: No
• Approval: UL
• Standard Package: 25 per Carton
• Additional Information: Construction Welded
• Catalog Number: CWLE 3/4
• Type: Gangable
• Height: 3 Inch
• Width: 2 Inch
• Depth: 2-3/4 Inch
• Capacity: 14 Cu Inch
• Number Of Knockouts: 5
• Knockout Location: (1) Bottom, (2) Sides, (2) Ends
• Catalog Description: GANGABLE SWITCH BOX, 14 CUBIC INCHES, 3 INCHES LONG X 2 INCHES WIDE X 2-3/4 INCHES DEEP, 3/4 INCH KNOCKOUTS, PRE-GALVANIZED STEEL, FOR USE WITH CONDUIT
• Category: Steel Outlet Boxes
• Full Technical Description: Gangable Type; Hot Rolled Pre-Galvanized AISI C-1008, ASTM G90-U 0.062 Inch Steel Material; 2 Inch; 3 Inch; 2-3/4 Inch; 1 Gang(S); UL Approval; 25 Per Carton Standard Package; 14 Cu Inch Capacity; (1) 3/4 Inch Conduit Bottom, (2) 3/4 Inch Conduit Sides, (2) 3/4 Inch Conduit Ends Knockout Size; 5 Knockout(S); (1) Bottom, (2) Sides, (2) Ends Knockout Location; No Clamp Type; ADJUST-A-BOX[R] Brand; Construction Welded
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Switch Box - Steel
• Unspsc: 39121306
• UPC 12 Digit: 785991106008
