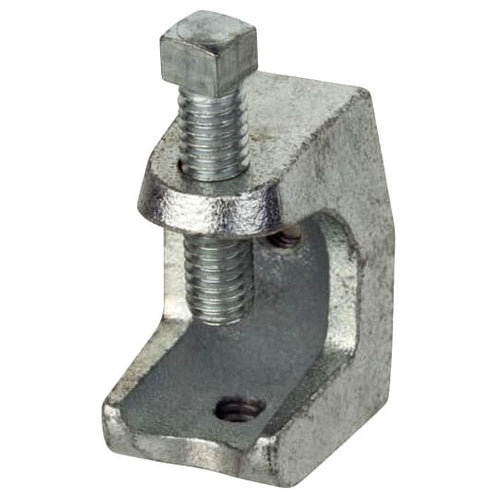

Steel City 508 Beam ClAMP 2-3/8X2-1/2 Opening 2-1/8 Iron

Overview

Steel City 508 Beam Clamp 2-3/8X2-1/2 Opening 2-1/8 Iron

Product Specifications

• UPC: 78599150976
• Material: Malleable Iron
• Finish: Silver Electroplated
• Application: Hanging Rod
• Additional Information: Overall Dimension 2-3/8 Inch Length x 2-1/2 Inch Width; Approval CSA
• Catalog Number: 508
• Brand Name: Steel City/Kindorf
• Type: I
• Maximum Jaw Capacity: 2-1/8 Inch
• Supplied With Screw: Yes
• Screw Type: Square Head
• Screw Size: 1/2 Inch-13 TPI
• Load Capacity: 1700 Pound
• Catalog Description: CLAMP, BEAM, LENGTH 2-3/8 INCHES, WIDTH 2-1/2 INCHES, JAW OPENING 2-1/8 INCHES, 1/2 INCH, 13 THREADED OPENING, MALLEABLE IRON
• Category: Channel & Strut Fittings
• Full Technical Description: Malleable Iron Material; Silver Electroplated Finish; 2-1/8 Inch Max. Jaw Capacity; Hanging Rod Application; 1250 Pound (Set Screw) Load Capacity; 1/2 Inch-13 TPI Screw Size; Yes Supplied With Screw; Approval CSA; Base Size 2-7/16 Inch Length X 2-9/16 Inch Width
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Beam Clamp
• Unspsc: 31162905
• UPC 12 Digit: 785991509762
• SKU Name: stlcity 508
