Steel City 665-RP Device Plate Duplex Use W/ 4-Gang Box Steel

Overview

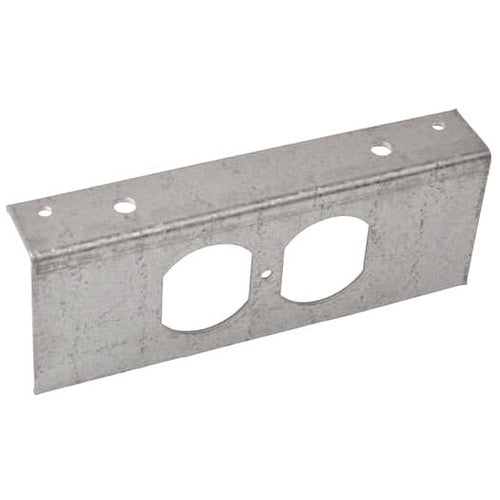

Steel City 665-RP Device Plate Duplex Use W/ 4-Gang Box Steel

Product Specifications

• UPC: 78599161862
• Approval: UL
• Additional Information: KNOCKOUT SIZE 3/4 INCH, 1-1/4 INCH
• Catalog Number: 665 RP
• Model: 665
• Type: POWER PANEL, COMMUNICATION PANEL
• Configuration: DUPLEX RECEPTACLE OPENING
• Size: 5-3/4 INCH L X 2-3/4 INCH W X 2-1/2 INCH D
• Material: STEEL
• Finish: GALVANIZED
• Used On: 665 SERIES FLOOR BOX
• Catalog Description: DEVICE PLATE, GALVANIZED STEEL, DUPLEX RECEPTACLE, FOR USE WITH FOUR GANG RECESSED SERVICE FLOOR BOX, 126 CUBIC INCHES FOR DEVICE ACCESS AND 40 CUBIC INCHES FOR DEVICE COMPARTMENTS, LENGTH 5-3/4 INCHES, WIDTH 2-3/4 INCHES, DEPTH 2-1/2 INCHES, 3/4 INCH AND 1-1/4 INCH KNOCKOUTS, GALVANIZED STEEL, DELIVERS POWER, COMMUNICATIONS AND DATA FROM STANDARD CONDUIT WITH NO EXPOSED SERVICE FITTINGS
• Category: Floor Boxes & Accessories
• Full Technical Description: Power Panel, Communication Panel Type; Steel Material; 5-3/4 Inch L X 2-3/4 Inch W X 2-1/2 Inch D Size; Galvanized Finish; 665 Series Floor Box Used on; Duplex Receptacle Opening Configuration; UL Approval; Knockout Size 3/4 Inch, 1-1/4 Inch; 665 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Raised Floor Device Panel/Plate
• Unspsc: 39121307
• UPC 12 Digit: 785991618624
• SKU Name: stlcity 665rp

Resources

• Product Brochure
• Product Spec Sheet
