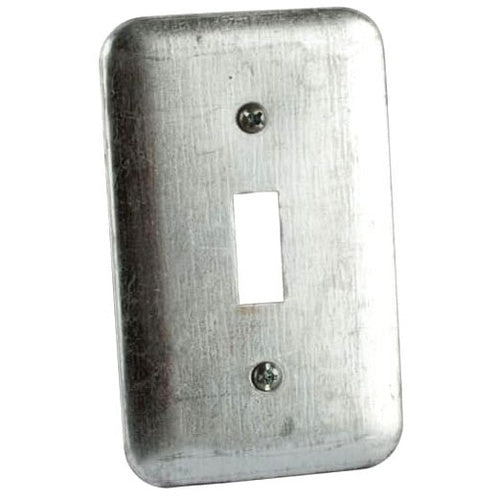

Steel City 68C30 4-1/8 X 2-1/2-Utility Box Cover, Steel, 1-Toggle Switch, R

Overview

Steel City 68C30 4-1/8 X 2-1/2-Utility Box Cover, Steel, 1-Toggle Switch, R

Product Specifications

• UPC: 78599114415
• Number Of Gangs: 1
• Material: Hot Rolled Pre-Galvanized AISI C-1008, ASTM G-90-U 0.062 Inch Steel
• Standard Package: 25
• Approval: UL
• Additional Information: Applicable Standard Federal Specification W-J-800
• Catalog Number: 68 C 30
• Type: Raised
• Height: 4-1/8 Inch
• Width: 2-1/2 Inch
• Box Width: 2-1/2 Inch
• Box Height: 4-1/8 Inch
• Raised: 3/16 Inch
• Opening Type: (1) Toggle Switch
• Catalog Description: SINGLE GANG UTILITY BOX COVER, 4-1/8 INCH LONG X 2-1/2 INCH WIDE X 3/16 INCH RAISED, PRE-GALVANIZED STEEL, FOR ONE TOGGLE SWITCH
• Category: Bar Hangers & Outlet Box Accy
• Full Technical Description: Raised Type; Hot Rolled Pre-Galvanized AISI C-1008, ASTM G-90-U 0.062 Inch Steel Material; 2-1/2 Inch; 4-1/8 Inch; 2-1/2 Inch Box Width; 4-1/8 Inch Box Height; 1 Gang(S); UL Approval; 25 Standard Package; (1) Toggle Switch Opening Type; 3/16 Inch Raised; Applicable Standard Federal Specification W-J-800
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Utility Box Surface Cover - Steel
• Unspsc: 39121304
• UPC 12 Digit: 785991144154
• SKU Name: stlcity 68c30

Resources

• Manufacturer Spec Sheet
