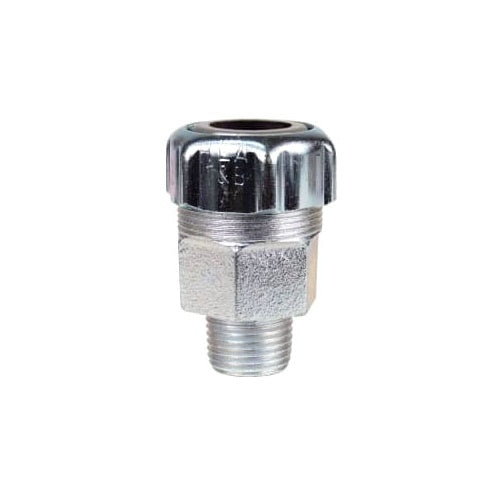

T&B 10468 Malleable Watertight Fitting Hub 3/4" 1.055-1.205

Overview

High durability for extended service life, Precision-engineered for optimal performance, Designed to withstand harsh environmental conditions

Product Specifications

• UPC: 78621030758
• Constructional Feature: Watertight
• Material: Malleable Iron
• Application: Hazardous Location
• Approval: UL, CSA
• Catalog Number: 10468
• Brand Name: Star Teck[R]
• Model: 10464
• Type: Straight, Threaded Male
• Hub Size: 3/4 Inch
• Cable Type: Teck/Jacketed Metal Clad Cable
• Cable Size: 1.055 to 1.205 Inch
• Diameter: 0.78 Inch
• Catalog Description: WATERTIGHT FITTING MADE OF MALLEABLE IRON WITH A HUB THREAD SIZE OF 3/4 INCH CABLE JACKET OUTSIDE DIAMETER IS 1.055 TO 1.205 INCHES.
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Straight, Threaded Male Type; Malleable Iron Material; 3/4 Inch Hub Size; Teck/Jacketed Metal Clad Cable Cable Type; 1.055 to 1.205 Inch Cable Size; UL, CSA Approval; Hazardous Location Application; 0.78 Inch Diameter; Watertight; 10464 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210307589
• SKU Name: T&B 10468
