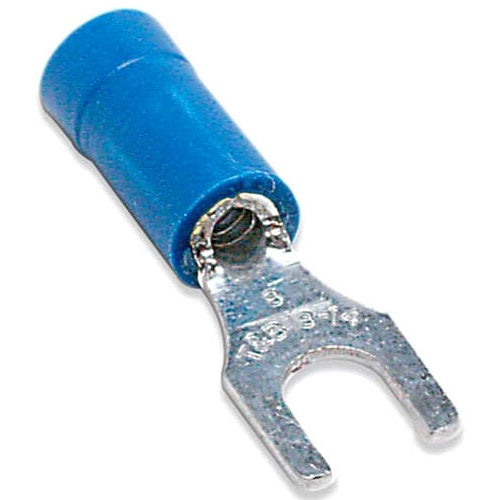

T&B 14RB-14F 18-14 Insulated Spade Terminal

Overview

T&B 14RB-14F 18-14 Insulated Spade Terminal

Product Specifications

• UPC: 78621083820
• Standard Package: 500 per Outer Pack
• Approval: UL, CSA
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.11 Inch Length x 0.44 Inch Width; Barrel Type Brazed Seam; Material Copper; Finish Tin Plated
• Catalog Number: 14RB-14F
• Brand Name: Sta-Kon
• Type: Standard
• Minimum Conductor Size: 18 AWG
• Maximum Conductor Size: 14 AWG
• Color: Blue
• Insulation Type: Vinyl Insulated
• Stud Size: 1/4 Inch
• Catalog Description: VINYL-INSULATED FORK TERMINAL, LENGTH 1.11 INCHES, WIDTH .44 INCHES, MAXIMUM INSULATION .170, BOLT HOLE 1/4 INCH, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL, CSA Approval; 500 Per Outer Pack Standard Package; 1/4 Inch Stud Size; Vinyl Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.11 Inch Length X 0.44 Inch Width; Barrel Type Brazed Seam; Material Copper; Finish Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Fork Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210838205
• SKU Name: t&b 14rb14f
